Suppo - A2212/13

Show Similiar


Specifications

  • Type: Outrunner
  • Weight: 52.00g (1.83oz)
  • Diameter: 27.60mm (1.09in)
  • Length: 26.00mm (1.02in)
  • Shaft Diameter: 3.00mm (0.12in)
  • Maximum Amps: 12

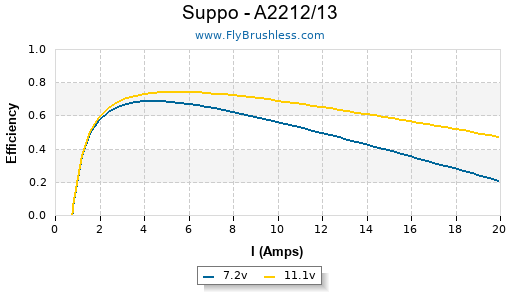

Constants

  • kV: 1080
  • Rm: 0.284
  • Io: 0.75



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 0.6 7380
8 0.65 8460
10 0.75 10500

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 8x4 1 7 3.35 23 6630 25.1 226 7.97 88%
GWS HD 8x4 1 7.9 4.1 32 7410 28.1 287 10.12 87%
GWS HD 8x4 1 8.9 4.85 43 8220 31.1 347 12.24 86%
GWS HD 8x4 1 9.9 5.65 55 8940 33.9 420 14.82 84%
GWS HD 8x4 1 10.9 6.5 70 9660 36.6 495 17.46 82%
GWS HD 9x5 1 6.9 5.5 37 6000 28.4 348 12.28 81%
GWS HD 9x5 1 7.9 6.7 52 6660 31.5 436 15.38 78%
GWS HD 9x5 1 8.9 7.85 69 7290 34.5 526 18.55 76%
GWS HD 9x5 1 9.9 9.25 91 7920 37.5 627 22.12 74%
APC E 10x5 1 6.9 7 48 5610 26.6 406 14.32 75%
APC E 10x5 1 7.9 8.45 66 6120 29.0 505 17.81 72%
APC E 10x5 1 8.9 9.9 88 6690 31.7 604 21.31 70%
APC E 10x5 1 9.9 11.45 113 7170 34.0 702 24.76 67%
APC E 10x5 1 10.9 13 141 7650 36.2 802 28.29 65%
GWS HD 10x6 1 6.9 7.2 49 5610 31.9 424 14.96 75%
GWS HD 10x6 1 7.9 8.7 68 6180 35.1 526 18.55 72%
GWS HD 10x6 1 8.9 10.1 89 6690 38.0 617 21.76 70%
GWS HD 10x6 1 9.9 11.7 115 7200 40.9 722 25.47 67%
GWS HD 10x6 1 10.9 13.25 144 7680 43.6 817 28.82 65%
GWS HD 10x8 1 10.8 18.2 196 6390 48.4 733 25.86 55%

Comments

rgoble on 2009-01-02 14:23:42
This motor is also sold under another brand name as the Grayson-Welgard - 2212/13
Como on 2013-11-16 06:52:55
The shafts on the ones I own are 3.17mm
