AEM - 28L-GTS

Specifications

  • Type: Outrunner
  • Weight: 57.00g (2.01oz)
  • Diameter: 28.00mm (1.10in)
  • Length: 29.00mm (1.14in)
  • Shaft Diameter: 3.17mm (0.12in)
  • Maximum Amps: 33
  • Maximum RPM: 40000

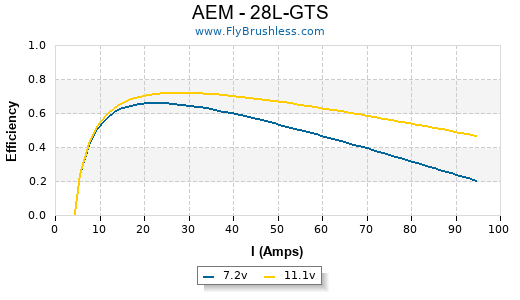

Constants

  • kV: 3960
  • Rm: 0.06
  • Io: 4.25



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 3.6 26970
8 3.75 30840
10 4.25 38340

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 8x4 4 6.9 6.15 42 6570 24.9 222 7.83 96%
GWS HD 8x4 4 6.9 6.25 43 6570 24.9 222 7.83 96%
GWS HD 8x4 4 7.9 7.25 57 7410 28.1 285 10.05 95%
GWS HD 8x4 4 7.9 7.25 57 7470 28.3 289 10.19 96%
GWS HD 8x4 4 8.9 8.25 73 8340 31.6 365 12.87 95%
GWS HD 8x4 4 8.9 8.3 73 8310 31.5 362 12.77 94%
GWS HD 8x4 4 9.9 9.5 94 9180 34.8 440 15.52 94%
GWS HD 8x4 4 9.9 9.5 94 9210 34.9 444 15.66 94%
GWS HD 8x4 4 10.8 10.65 115 10020 38.0 534 18.84 94%
GWS HD 8x4 4 10.9 10.75 117 10020 38.0 538 18.98 93%
APC E 8x8 4 7.9 14.65 115 6930 52.5 407 14.36 89%
APC E 8x8 4 11.5 25.8 296 9450 71.6 759 26.77 83%
GWS HD 9x5 4 6.9 8.9 61 6360 30.1 394 13.90 93%
GWS HD 9x5 4 7.9 10.65 84 7200 34.1 511 18.02 92%
GWS HD 9x5 4 8.8 12.55 110 7980 37.8 629 22.19 92%
GWS HD 9x5 4 9.8 14.8 145 8760 41.5 759 26.77 90%
GWS HD 9x5 4 10.8 16.8 181 9540 45.2 900 31.75 89%
APC E 9x6 4 8 13.4 107 7080 40.2 589 20.78 89%
APC E 9x6 4 11.7 23.2 271 9810 55.7 1144 40.35 85%
APC E 9x7.5 4 7.9 17.3 136 6720 47.7 560 19.75 86%
APC E 10x5 4 7.9 14.1 111 6960 33.0 677 23.88 89%
APC E 10x5 4 11 23.2 255 9150 43.3 1200 42.33 84%
GWS HD 10x6 4 6.9 11.4 78 6210 35.3 519 18.31 91%
GWS HD 10x6 4 7.8 13.55 105 6960 39.5 656 23.14 90%
GWS HD 10x6 4 8.8 16.2 142 7740 44.0 805 28.40 89%
GWS HD 10x6 4 9.7 18.9 183 8430 47.9 964 34.00 88%
GWS HD 10x6 4 10.7 21.7 232 9150 52.0 1140 40.21 86%
APC E 10x7 4 7.8 16.6 129 6720 44.5 730 25.75 87%
APC E 10x7 4 10.8 26.2 282 8820 58.5 1240 43.74 82%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 10x8 4 7.9 21.3 168 6480 49.1 750 26.46 83%
GWS HD 10x8 4 11.3 37 418 8460 64.1 1334 47.06 76%
APC E 11x5.5 4 7.7 17.3 133 6600 34.4 842 29.70 87%
APC E 11x5.5 4 11.2 31.2 349 8790 45.8 1589 56.05 79%
GWS HD 11x7 4 7.9 20.1 158 6540 43.4 944 33.30 84%
GWS HD 11x7 4 10.6 31 328 8220 54.5 1527 53.86 78%
GWS HD 11x7 4 11.2 33.4 374 8550 56.7 1663 58.66 77%
APC E 12x6 4 7.7 21.1 162 6150 34.9 1033 36.44 81%
APC E 12x6 4 10.8 37.3 402 7950 45.2 1833 64.66 74%
