Atlas - AM 2909/20
Specifications
- Type: Outrunner
- Weight: 98.00g (3.46oz)
- Maximum Amps: 23

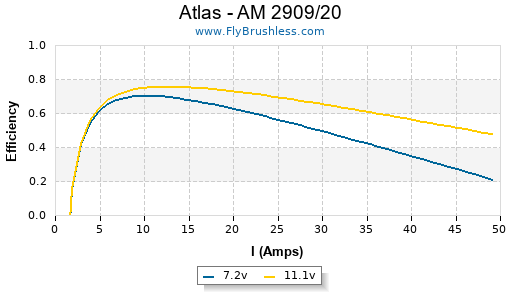

Constants
- kV: 1200
- Rm: 0.115
- Io: 1.65
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 1.35 | 8250 |
| 8 | 1.4 | 9420 |
| 10 | 1.65 | 11790 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 8x6 | 1 | 6.8 | 9.9 | 67 | 6990 | 39.7 | 350 | 12.35 | 86% |
| APC E 8x6 | 1 | 7.8 | 12.25 | 95 | 7800 | 44.3 | 442 | 15.59 | 83% |
| APC E 8x6 | 1 | 8.7 | 14.7 | 127 | 8520 | 48.4 | 538 | 18.98 | 82% |
| APC E 8x6 | 1 | 9.7 | 17.4 | 168 | 9270 | 52.7 | 654 | 23.07 | 80% |
| APC E 8x6 | 1 | 10.6 | 20.2 | 214 | 9990 | 56.8 | 754 | 26.60 | 79% |
| Aeronaut Carbon 8.5x5 | 1 | 6.9 | 7.5 | 51 | 7380 | 34.9 | 356 | 12.56 | 89% |
| Aeronaut Carbon 8.5x5 | 1 | 7.9 | 9.15 | 72 | 8250 | 39.1 | 458 | 16.16 | 87% |
| Aeronaut Carbon 8.5x5 | 1 | 8.8 | 10.8 | 95 | 9090 | 43.0 | 560 | 19.75 | 86% |
| Aeronaut Carbon 8.5x5 | 1 | 9.8 | 12.8 | 125 | 9960 | 47.2 | 682 | 24.06 | 85% |
| Aeronaut Carbon 8.5x5 | 1 | 10.7 | 14.9 | 159 | 10830 | 51.3 | 802 | 28.29 | 84% |
| APC E 9x4.5 | 1 | 6.6 | 8.2 | 54 | 6840 | 29.1 | 425 | 14.99 | 86% |
| APC E 9x4.5 | 1 | 6.9 | 8.95 | 61 | 7140 | 30.4 | 470 | 16.58 | 86% |
| APC E 9x4.5 | 1 | 7.8 | 11 | 85 | 7980 | 34.0 | 583 | 20.56 | 85% |
| APC E 9x4.5 | 1 | 8.7 | 13.2 | 114 | 8760 | 37.3 | 710 | 25.04 | 84% |
| APC E 9x4.5 | 1 | 9.8 | 16.15 | 158 | 9630 | 41.0 | 886 | 31.25 | 82% |
| APC E 9x4.5 | 1 | 10.7 | 18.4 | 196 | 10290 | 43.9 | 1010 | 35.63 | 80% |
| GWS HD 9x5 | 1 | 6.8 | 9.15 | 62 | 7110 | 33.7 | 484 | 17.07 | 87% |
| GWS HD 9x5 | 1 | 7.8 | 11.25 | 87 | 7980 | 37.8 | 608 | 21.45 | 85% |
| GWS HD 9x5 | 1 | 8.8 | 13.55 | 119 | 8790 | 41.6 | 749 | 26.42 | 83% |
| GWS HD 9x5 | 1 | 9.7 | 15.95 | 154 | 9540 | 45.2 | 898 | 31.68 | 82% |
| GWS HD 9x5 | 1 | 10.7 | 18.5 | 197 | 10260 | 48.6 | 1049 | 37.00 | 80% |
| APC E 9x6 | 1 | 6.3 | 9.95 | 62 | 6390 | 36.3 | 456 | 16.08 | 85% |
| APC E 9x6 | 1 | 6.8 | 11.2 | 76 | 6840 | 38.9 | 522 | 18.41 | 84% |
| APC E 9x6 | 1 | 7.8 | 13.65 | 106 | 7620 | 43.3 | 649 | 22.89 | 81% |
| APC E 9x6 | 1 | 8.7 | 16.4 | 142 | 8400 | 47.7 | 797 | 28.11 | 80% |
| APC E 9x6 | 1 | 9.5 | 18.44 | 175 | 8940 | 50.8 | 900 | 31.75 | 78% |
| APC E 9x6 | 1 | 9.7 | 19 | 184 | 9090 | 51.6 | 928 | 32.73 | 78% |
| GWS HD 10x6 | 1 | 6.8 | 12 | 81 | 6780 | 38.5 | 604 | 21.31 | 83% |
| GWS HD 10x6 | 1 | 7.7 | 14.6 | 112 | 7470 | 42.4 | 749 | 26.42 | 81% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 10x6 | 1 | 8.7 | 17.35 | 150 | 8250 | 46.9 | 903 | 31.85 | 79% |
| GWS HD 10x6 | 1 | 9.6 | 20.2 | 193 | 8910 | 50.6 | 1050 | 37.04 | 77% |
| GWS HD 10x6 | 1 | 10.6 | 23.7 | 251 | 9570 | 54.4 | 1233 | 43.49 | 75% |
