Razor - RZ-300

Specifications

  • Type: Inrunner
  • Weight: 28.00g (0.99oz)
  • Diameter: 19.60mm (0.77in)
  • Length: 27.80mm (1.09in)
  • Shaft Diameter: 2.00mm (0.08in)
  • Maximum Amps: 12

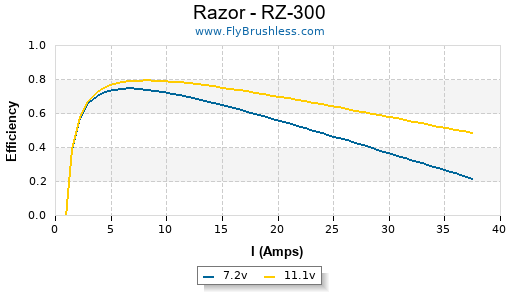

Constants

  • kV: 5015
  • Rm: 0.15
  • Io: 0.9



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 0.8 34380
8 0.8 39400
10 0.9 48900

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
Wemotec MicroFan Impeller 1.91x3 1 6.9 6.3 43 30945 87.9 139 4.90 89%
Wemotec MicroFan Impeller 1.91x3 1 7.9 7.75 61 34860 99.0 178 6.28 88%
Wemotec MicroFan Impeller 1.91x3 1 8.9 9.05 80 38350 109.0 217 7.65 86%
Wemotec MicroFan Impeller 1.91x3 1 9.9 10.75 106 41865 118.9 262 9.24 84%
GWS HD 7x3.5 5.33 7 1.8 12 6420 21.3 84 2.96 97%
GWS HD 7x3.5 5.33 8 2.1 16 7290 24.2 118 4.16 97%
GWS HD 7x3.5 5.33 9 2.4 21 8220 27.2 144 5.08 97%
GWS HD 7x3.5 5.33 10 2.75 27 9060 30.0 182 6.42 96%
GWS HD 7x3.5 5.33 11 3.2 35 9930 32.9 223 7.87 96%
APC SF 7x6 5.33 6.9 3.95 27 6090 34.6 176 6.21 94%
APC SF 7x6 5.33 7.9 4.95 39 6870 39.0 226 7.97 92%
APC SF 7x6 5.33 8.9 5.9 52 7560 43.0 278 9.81 90%
APC SF 7x6 5.33 9.9 7.05 69 8250 46.9 334 11.78 89%
APC SF 7x6 5.33 10.9 8.3 90 8970 51.0 395 13.93 87%
APC Sport 7x7 5.33 7 3.85 26 6150 40.8 159 5.61 93%
APC Sport 7x7 5.33 7.9 4.6 36 6930 45.9 204 7.20 93%
APC Sport 7x7 5.33 8.9 5.4 48 7710 51.1 255 8.99 92%
APC Sport 7x7 5.33 9.9 6.3 62 8460 56.1 308 10.86 91%
APC Sport 7x7 5.33 10.9 7.15 77 9180 60.9 362 12.77 90%
GWS HD 8x4 5.33 7 3.15 22 6300 23.9 200 7.05 96%
GWS HD 8x4 5.33 7.9 3.8 30 7080 26.8 259 9.14 95%
GWS HD 8x4 5.33 8.9 4.5 40 7860 29.8 318 11.22 94%
GWS HD 8x4 5.33 9.9 5.25 51 8640 32.7 383 13.51 93%
GWS HD 8x4 5.33 10.9 6.1 66 9390 35.6 460 16.23 92%
GWS HD 8x6 5.33 6.9 5.05 34 5970 33.9 256 9.03 92%
GWS HD 8x6 5.33 7.9 6.2 48 6660 37.8 319 11.25 90%
GWS HD 8x6 5.33 8.9 7.35 65 7350 41.8 387 13.65 88%
GWS HD 8x6 5.33 9.9 8.7 86 8010 45.5 462 16.30 86%
GWS HD 8x6 5.33 10.9 10.1 110 8700 49.4 540 19.05 85%
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
Aeronaut 8.5x5 5.33 6.9 4.4 30 6060 28.7 248 8.75 93%
Aeronaut 8.5x5 5.33 7.9 5.4 42 6810 32.2 314 11.08 92%
Aeronaut 8.5x5 5.33 8.9 6.4 56 7560 35.8 388 13.69 90%
Aeronaut 8.5x5 5.33 9.9 7.5 74 8250 39.1 469 16.54 89%
Aeronaut 8.5x5 5.33 10.9 8.6 93 8940 42.3 552 19.47 87%
GWS HD 9x5 5.33 6.9 5.3 36 5940 28.1 332 11.71 91%
GWS HD 9x5 5.33 7.9 6.5 51 6600 31.2 427 15.06 89%
GWS HD 9x5 5.33 8.9 7.75 68 7290 34.5 515 18.17 87%
GWS HD 9x5 5.33 9.9 9.2 91 7950 37.6 627 22.12 85%
GWS HD 9x5 5.33 10.9 10.5 114 8610 40.8 737 26.00 84%
GWS HD 9x7.5 5.33 6.9 8.3 57 5460 38.8 354 12.49 84%
GWS HD 9x7.5 5.33 7.9 10.1 79 6030 42.8 439 15.49 81%
GWS HD 9x7.5 5.33 8.9 12 106 6600 46.9 523 18.45 79%
GWS HD 9x7.5 5.33 9.9 14.5 143 7320 52.0 646 22.79 79%
GWS HD 10x6 5.33 6.9 7.35 50 5730 32.6 437 15.41 88%
GWS HD 10x6 5.33 7.9 8.9 70 6360 36.1 548 19.33 86%
GWS HD 10x6 5.33 8.9 10.65 94 7020 39.9 662 23.35 84%
GWS HD 10x6 5.33 9.9 12.4 122 7620 43.3 786 27.73 82%
GWS HD 10x6 5.33 10.9 14.2 154 8160 46.4 904 31.89 80%
