GPS - B24-43-A
Specifications
- Type: Inrunner
- Weight: 82.00g (2.89oz)
- Diameter: 24.15mm (0.95in)
- Length: 47.15mm (1.86in)
- Shaft Diameter: 2.00mm (0.08in)
- Maximum Amps: 30
Constants
- kV: 3960
- Rm: 0.073
- Io: 1.99
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 10.02 | 1.99 | 38940 |

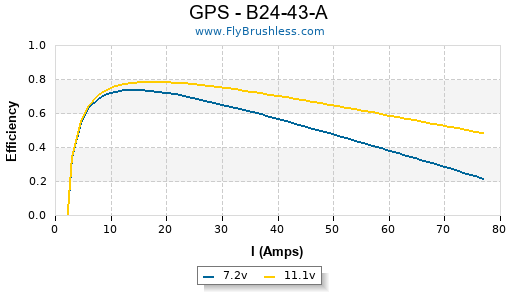

Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 8x4 | 3 | 6.9 | 7.4 | 51 | 8430 | 31.9 | 372 | 13.12 | 93% |
| GWS HD 9x5 | 3 | 6.9 | 9.7 | 66 | 7050 | 33.4 | 500 | 17.64 | 77% |
| GWS HD 9x5 | 3 | 7.8 | 12.3 | 95 | 7920 | 37.5 | 645 | 22.75 | 77% |
| GWS HD 9x5 | 3 | 8.8 | 15.15 | 133 | 8850 | 41.9 | 804 | 28.36 | 76% |
| GWS HD 9x5 | 3 | 9.8 | 18.2 | 178 | 9690 | 45.9 | 980 | 34.57 | 75% |
| GWS HD 9x5 | 3 | 10.8 | 21.4 | 231 | 10470 | 49.6 | 1155 | 40.74 | 73% |
| GWS HD 10x6 | 3 | 6.8 | 13.5 | 91 | 6750 | 38.4 | 645 | 22.75 | 75% |
| GWS HD 10x6 | 3 | 7.8 | 17 | 132 | 7590 | 43.1 | 814 | 28.71 | 74% |
| GWS HD 10x6 | 3 | 8.6 | 20.2 | 173 | 8340 | 47.4 | 990 | 34.92 | 73% |
| GWS HD 10x6 | 3 | 11 | 30.7 | 337 | 10020 | 56.9 | 1468 | 51.78 | 69% |
