Komodo - KH2204-11
Specifications
- Type: Outrunner
- Weight: 26.00g (0.92oz)
- Diameter: 27.15mm (1.07in)
- Length: 15.25mm (0.60in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 13

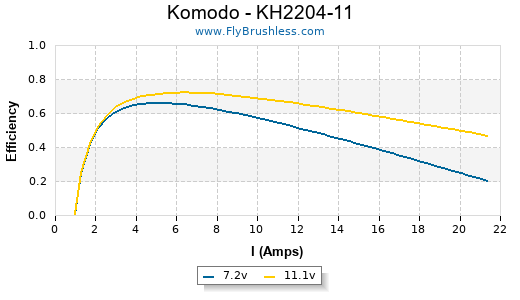

Constants
- kV: 1800
- Rm: 0.266
- Io: 0.95
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.8 | 12230 |
| 8 | 0.85 | 13910 |
| 10 | 0.95 | 17400 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| Zagi Carbon 5.1x4.9 | 1 | 7 | 4.15 | 29 | 10740 | 49.8 | 161 | 5.68 | 85% |
| Zagi Carbon 5.1x4.9 | 1 | 7.9 | 5.05 | 39 | 12000 | 55.7 | 205 | 7.23 | 84% |
| Zagi Carbon 5.1x4.9 | 1 | 8.9 | 6 | 53 | 13200 | 61.2 | 248 | 8.75 | 82% |
| Zagi Carbon 5.1x4.9 | 1 | 9.9 | 7 | 69 | 14400 | 66.8 | 295 | 10.41 | 81% |
| Zagi Carbon 5.1x4.9 | 1 | 10.9 | 8.1 | 88 | 15480 | 71.8 | 344 | 12.13 | 79% |
| APC E 5.25x6.25 | 1 | 6.9 | 5.9 | 40 | 9900 | 58.6 | 138 | 4.87 | 80% |
| APC E 5.25x6.25 | 1 | 7.9 | 7.2 | 56 | 11010 | 65.2 | 171 | 6.03 | 77% |
| APC E 5.25x6.25 | 1 | 8.9 | 8.6 | 76 | 12060 | 71.4 | 208 | 7.34 | 75% |
| APC E 5.25x6.25 | 1 | 9.9 | 9.9 | 98 | 12960 | 76.7 | 241 | 8.50 | 73% |
| APC E 5.25x6.25 | 1 | 10.9 | 11.5 | 125 | 13890 | 82.2 | 277 | 9.77 | 71% |
| GWS HD 6x3 | 1 | 7 | 3.6 | 25 | 10980 | 31.2 | 180 | 6.35 | 87% |
| GWS HD 6x3 | 1 | 7.9 | 4.35 | 34 | 12330 | 35.0 | 227 | 8.01 | 87% |
| GWS HD 6x3 | 1 | 8.9 | 5.2 | 46 | 13620 | 38.7 | 284 | 10.02 | 85% |
| GWS HD 6x3 | 1 | 9.9 | 6.05 | 59 | 14880 | 42.3 | 342 | 12.06 | 84% |
| GWS HD 6x3 | 1 | 10.9 | 9.25 | 100 | 14880 | 42.3 | 320 | 11.29 | 76% |
| APC E 6x4 | 1 | 6.9 | 5.1 | 35 | 10290 | 39.0 | 208 | 7.34 | 83% |
| APC E 6x4 | 1 | 7.9 | 6.25 | 49 | 11490 | 43.5 | 264 | 9.31 | 81% |
| APC E 6x4 | 1 | 8.9 | 7.35 | 65 | 12540 | 47.5 | 319 | 11.25 | 78% |
| APC E 6x4 | 1 | 9.9 | 8.65 | 85 | 13620 | 51.6 | 380 | 13.40 | 76% |
| APC E 6x4 | 1 | 10.9 | 10 | 109 | 14610 | 55.3 | 444 | 15.66 | 74% |
| Aeronaut 6x5 | 1 | 6.9 | 6.35 | 43 | 9810 | 46.5 | 209 | 7.37 | 79% |
| Aeronaut 6x5 | 1 | 7.9 | 7.35 | 58 | 10920 | 51.7 | 274 | 9.67 | 77% |
| Aeronaut 6x5 | 1 | 8.9 | 8.8 | 78 | 11970 | 56.7 | 332 | 11.71 | 75% |
| Aeronaut 6x5 | 1 | 9.9 | 10.15 | 100 | 12840 | 60.8 | 388 | 13.69 | 72% |
| Aeronaut 6x5 | 1 | 10.9 | 11.3 | 123 | 13710 | 64.9 | 439 | 15.49 | 70% |
| APC E 6x5.5 | 1 | 6.9 | 6.95 | 47 | 9570 | 49.8 | 204 | 7.20 | 77% |
| APC E 6x5.5 | 1 | 7.9 | 8.2 | 64 | 10560 | 55.0 | 253 | 8.92 | 74% |
| APC E 6x5.5 | 1 | 8.9 | 9.6 | 85 | 11580 | 60.3 | 312 | 11.01 | 72% |
| APC E 6x5.5 | 1 | 9.9 | 10.8 | 106 | 12540 | 65.3 | 371 | 13.09 | 70% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| APC E 6x5.5 | 1 | 10.9 | 12.25 | 133 | 13440 | 70.0 | 424 | 14.96 | 69% |
| Aeronaut 6.5x4 | 1 | 6.9 | 6.2 | 42 | 9780 | 37.0 | 264 | 9.31 | 79% |
| Aeronaut 6.5x4 | 1 | 7.9 | 7.55 | 59 | 10980 | 41.6 | 341 | 12.03 | 77% |
| Aeronaut 6.5x4 | 1 | 8.9 | 8.7 | 77 | 11970 | 45.3 | 412 | 14.53 | 75% |
| Aeronaut 6.5x4 | 1 | 9.9 | 10.1 | 99 | 12930 | 49.0 | 484 | 17.07 | 73% |
| Aeronaut 6.5x4 | 1 | 10.9 | 11.5 | 125 | 13800 | 52.3 | 554 | 19.54 | 70% |
| GWS HD 7x3.5 | 1 | 6.9 | 5 | 34 | 10320 | 34.2 | 256 | 9.03 | 83% |
| GWS HD 7x3.5 | 1 | 7.9 | 6.05 | 47 | 11520 | 38.2 | 326 | 11.50 | 81% |
| GWS HD 7x3.5 | 1 | 8.9 | 7.2 | 64 | 12600 | 41.8 | 399 | 14.07 | 79% |
| GWS HD 7x3.5 | 1 | 9.9 | 8.5 | 84 | 13620 | 45.1 | 476 | 16.79 | 76% |
| GWS HD 7x3.5 | 1 | 10.9 | 9.85 | 107 | 14640 | 48.5 | 558 | 19.68 | 75% |
| GWS HD 9x5 | 1 | 7 | 12.5 | 87 | 7110 | 33.7 | 502 | 17.71 | 56% |
Comments
Dr Kiwi on 2011-05-12 07:24:36
Overall length (= shaft length) = 44.87mm
