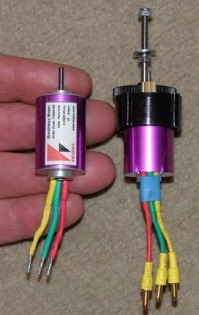

Tower Pro - 4700
Specifications
- Type: Inrunner
- Weight: 47.00g (1.66oz)
- Diameter: 20.00mm (0.79in)
- Length: 35.00mm (1.38in)
- Shaft Diameter: 2.00mm (0.08in)
- Maximum Amps: 16
Constants
- kV: 4700
- Rm: 0
- Io: 0
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 8x4 | 5.33 | 7 | 3.15 | 22 | 5970 | 22.6 | 174 | 6.14 | 97% |
| GWS HD 8x4 | 5.33 | 7.9 | 3.7 | 29 | 6780 | 25.7 | 222 | 7.83 | 97% |
| GWS HD 8x4 | 5.33 | 8.9 | 4.4 | 39 | 7560 | 28.6 | 284 | 10.02 | 96% |
| GWS HD 8x4 | 5.33 | 9.9 | 5.25 | 51 | 8370 | 31.7 | 346 | 12.20 | 96% |
| GWS HD 8x4 | 5.33 | 10.9 | 6.2 | 67 | 9150 | 34.7 | 418 | 14.74 | 95% |
| GWS HD 9x5 | 5.33 | 6.9 | 5.2 | 35 | 5700 | 27.0 | 306 | 10.79 | 94% |
| GWS HD 9x5 | 5.33 | 7.9 | 6.5 | 51 | 6450 | 30.5 | 386 | 13.62 | 93% |
| GWS HD 9x5 | 5.33 | 8.9 | 8 | 71 | 7200 | 34.1 | 494 | 17.43 | 92% |
| GWS HD 9x5 | 5.33 | 9.9 | 9.2 | 91 | 7830 | 37.1 | 584 | 20.60 | 90% |
| GWS HD 10x6 | 5.33 | 6.9 | 6.8 | 46 | 5430 | 30.9 | 392 | 13.83 | 89% |
| GWS HD 10x6 | 5.33 | 7.9 | 8.55 | 67 | 6150 | 34.9 | 496 | 17.50 | 88% |
| GWS HD 10x6 | 5.33 | 8.9 | 10.4 | 92 | 6780 | 38.5 | 605 | 21.34 | 86% |
| GWS HD 10x6 | 5.33 | 9.9 | 12.5 | 123 | 7410 | 42.1 | 739 | 26.07 | 85% |
| GWS HD 10x6 | 5.33 | 10.9 | 14.4 | 156 | 8040 | 45.7 | 869 | 30.65 | 84% |
