GPS - B24-35-C
Specifications
- Type: Inrunner
- Weight: 60.00g (2.12oz)
- Diameter: 24.15mm (0.95in)
- Length: 37.15mm (1.46in)
- Shaft Diameter: 2.00mm (0.08in)
- Maximum Amps: 20

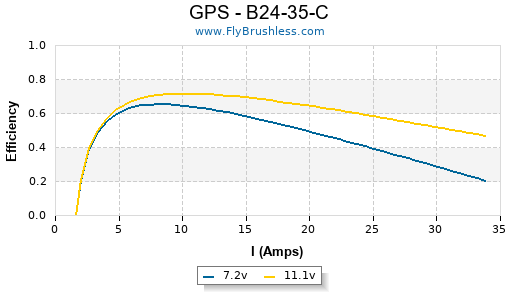

Constants
- kV: 4680
- Rm: 0.168
- Io: 1.59
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 10.065 | 1.59 | 44040 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 8x4 | 7 | 7.9 | 9.45 | 74 | 9510 | 36.0 | 487 | 17.18 | 180% |
| GWS HD 8x4 | 7 | 8.9 | 11.85 | 105 | 10650 | 40.3 | 615 | 21.69 | 179% |
| GWS HD 8x4 | 7 | 9.9 | 14.5 | 143 | 11730 | 44.4 | 758 | 26.74 | 177% |
| GWS HD 8x4 | 7 | 10.9 | 17.2 | 187 | 12750 | 48.3 | 914 | 32.24 | 175% |
| GWS HD 9x5 | 7 | 6.8 | 13.4 | 91 | 7890 | 37.4 | 633 | 22.33 | 174% |
| GWS HD 9x5 | 7 | 7.8 | 16.8 | 131 | 8820 | 41.8 | 799 | 28.18 | 169% |
| GWS HD 10x6 | 7 | 6.9 | 3.8 | 26 | 4140 | 23.5 | 238 | 8.40 | 90% |
| GWS HD 10x6 | 7 | 7.9 | 4.55 | 35 | 4740 | 26.9 | 304 | 10.72 | 90% |
| GWS HD 10x6 | 7 | 8.9 | 5.5 | 48 | 5310 | 30.2 | 394 | 13.90 | 89% |
| GWS HD 10x6 | 7 | 9.9 | 6.5 | 64 | 5820 | 33.1 | 472 | 16.65 | 88% |
| GWS HD 10x6 | 7 | 10.8 | 7.4 | 79 | 6390 | 36.3 | 560 | 19.75 | 88% |
| GWS HD 10x6 | 7 | 14.6 | 12.4 | 181 | 8160 | 46.4 | 946 | 33.37 | 84% |
| GWS HD 11x7 | 7 | 6.9 | 5.5 | 37 | 3960 | 26.2 | 365 | 12.87 | 86% |
| GWS HD 11x7 | 7 | 7.9 | 6.7 | 52 | 4500 | 29.8 | 456 | 16.08 | 85% |
| GWS HD 11x7 | 7 | 8.9 | 8.05 | 71 | 5040 | 33.4 | 577 | 20.35 | 85% |
| GWS HD 11x7 | 7 | 9.8 | 9.55 | 93 | 5520 | 36.6 | 695 | 24.52 | 84% |
| GWS HD 11x7 | 7 | 10.8 | 11.05 | 119 | 5970 | 39.6 | 807 | 28.47 | 83% |
| GWS HD 11x7 | 7 | 14.6 | 17.6 | 256 | 7620 | 50.5 | 1330 | 46.91 | 78% |
| GWS HD 12x8 | 7 | 6.9 | 7.3 | 50 | 3810 | 28.9 | 468 | 16.51 | 83% |
| GWS HD 12x8 | 7 | 7.9 | 8.8 | 69 | 4290 | 32.5 | 577 | 20.35 | 81% |
| GWS HD 12x8 | 7 | 8.8 | 10.6 | 93 | 4770 | 36.1 | 710 | 25.04 | 81% |
| GWS HD 12x8 | 7 | 9.8 | 12.5 | 122 | 5190 | 39.3 | 860 | 30.34 | 79% |
| GWS HD 12x8 | 7 | 10.8 | 14.6 | 157 | 5580 | 42.3 | 1000 | 35.27 | 77% |
