Suppo - A2217K-7T



Specifications

  • Type: Outrunner
  • Weight: 70.00g (2.47oz)
  • Diameter: 27.60mm (1.09in)
  • Length: 33.60mm (1.32in)
  • Shaft Diameter: 4.00mm (0.16in)
  • Maximum Amps: 22

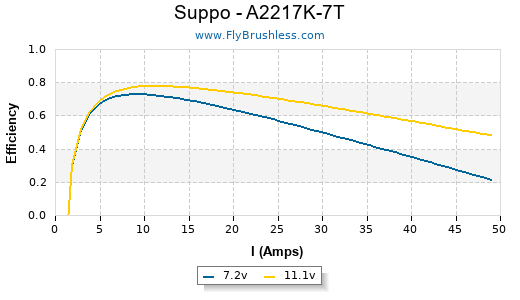

Constants

  • kV: 1340
  • Rm: 0.115
  • Io: 1.35



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 1.15 9180
8 1.2 10540
10 1.35 13200

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
GWS HD 8x4 1 6.9 6.9 47 8400 31.8 374 13.19 91%
GWS HD 8x4 1 7.9 8.5 67 9420 35.7 478 16.86 89%
GWS HD 8x4 1 8.8 10.2 89 10410 39.4 587 20.71 88%
GWS HD 8x4 1 9.8 12.05 118 11340 43.0 712 25.12 86%
GWS HD 8x4 1 10.8 13.9 150 12210 46.2 826 29.14 84%
GWS HD 9x5 1 6.8 11.65 79 7650 36.2 590 20.81 84%
GWS HD 9x5 1 7.8 14 109 8400 39.8 726 25.61 80%
GWS HD 9x5 1 8.8 16.9 148 9240 43.8 886 31.25 78%
GWS HD 9x5 1 9.7 19.6 190 9990 47.3 1035 36.51 77%
APC SF 10x4.7 1 7.6 22.1 167 7050 31.4 956 33.72 69%
APC E 10x5 1 7.7 17.95 138 7710 36.5 845 29.81 75%
GWS HD 10x6 1 7.7 17.6 135 7740 44.0 834 29.42 75%
APC E 11x5.5 1 7.6 21.3 161 7050 36.7 974 34.36 69%
GWS HD 11x7 1 7.5 23.4 175 6540 43.4 980 34.57 65%
