GPS - C35-36-C
Specifications
- Type: Outrunner
- Weight: 102.00g (3.60oz)
- Diameter: 35.00mm (1.38in)
- Length: 37.00mm (1.46in)
- Shaft Diameter: 4.00mm (0.16in)
- Maximum Amps: 25
Constants
- kV: 1110
- Rm: 0.135
- Io: 1.91
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 10.03 | 1.91 | 10860 |

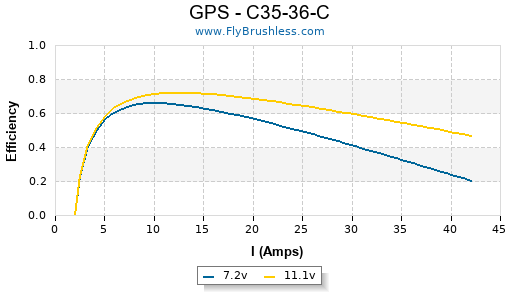

Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 9x5 | 1 | 6.9 | 8.25 | 56 | 6660 | 31.5 | 443 | 15.63 | 87% |
| GWS HD 9x5 | 1 | 7.9 | 9.95 | 78 | 7440 | 35.2 | 557 | 19.65 | 85% |
| GWS HD 9x5 | 1 | 8.9 | 11.8 | 105 | 8160 | 38.6 | 685 | 24.16 | 83% |
| GWS HD 9x5 | 1 | 9.8 | 13.9 | 136 | 8910 | 42.2 | 816 | 28.78 | 82% |
| GWS HD 10x6 | 1 | 6.9 | 10.75 | 74 | 6270 | 35.6 | 554 | 19.54 | 82% |
| GWS HD 10x6 | 1 | 7.9 | 13.15 | 103 | 6990 | 39.7 | 693 | 24.44 | 80% |
| GWS HD 10x6 | 1 | 8.8 | 15.45 | 135 | 7650 | 43.5 | 826 | 29.14 | 78% |
| GWS HD 10x6 | 1 | 9.8 | 17.8 | 174 | 8250 | 46.9 | 972 | 34.29 | 76% |
| GWS HD 10x6 | 1 | 10.7 | 20.3 | 217 | 8850 | 50.3 | 1110 | 39.15 | 75% |
| APC E 10x7 | 1 | 6.8 | 12.85 | 87 | 6000 | 39.8 | 660 | 23.28 | 79% |
| APC E 10x7 | 1 | 7.8 | 15.4 | 120 | 6660 | 44.1 | 810 | 28.57 | 77% |
| APC E 10x7 | 1 | 8.8 | 18.4 | 161 | 7260 | 48.1 | 976 | 34.43 | 74% |
| APC E 10x7 | 1 | 9.7 | 21.3 | 206 | 7800 | 51.7 | 1154 | 40.71 | 72% |
| APC E 10x7 | 1 | 10.6 | 24.2 | 256 | 8220 | 54.5 | 1310 | 46.21 | 70% |
| APC E 10x7 | 1 | 10.8 | 24 | 259 | 8250 | 54.7 | 1292 | 45.57 | 69% |
| APC E 10x7 | 1 | 10.9 | 24.7 | 269 | 8310 | 55.1 | 1344 | 47.41 | 69% |
| APC E 10x7 | 1 | 11.1 | 26 | 288 | 8400 | 55.7 | 1375 | 48.50 | 68% |
| APC E 11x5.5 | 1 | 6.8 | 12.9 | 87 | 6030 | 31.4 | 662 | 23.35 | 80% |
| APC E 11x5.5 | 1 | 7.8 | 15.5 | 120 | 6630 | 34.5 | 815 | 28.75 | 77% |
| APC E 11x5.5 | 1 | 8.8 | 18.3 | 161 | 7230 | 37.7 | 980 | 34.57 | 74% |
| APC E 11x5.5 | 1 | 9.7 | 21.3 | 206 | 7800 | 40.6 | 1154 | 40.71 | 72% |
| APC E 11x5.5 | 1 | 10.7 | 24.4 | 261 | 8310 | 43.3 | 1336 | 47.13 | 70% |
| GWS HD 11x7 | 1 | 7.7 | 17.7 | 136 | 6240 | 41.4 | 894 | 31.53 | 73% |
| GWS HD 11x7 | 1 | 11 | 28 | 308 | 7860 | 52.1 | 1468 | 51.78 | 64% |
| GWS HD 11x7 | 1 | 11.1 | 28.7 | 318 | 7950 | 52.7 | 1509 | 53.23 | 65% |
