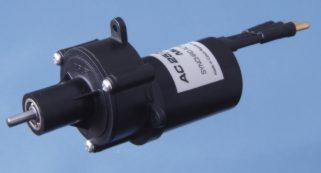

MP Jet - 25/35-20
Specifications
- Type: Inrunner
- Weight: 56.00g (1.98oz)
- Diameter: 25.00mm (0.98in)
- Length: 35.00mm (1.38in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 25
- Maximum RPM: 45000
Constants
- kV: 3850
- Rm: 0.1
- Io: 0
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 9x4.5 | 4.1 | 10.1 | 11.7 | 118 | 8400 | 35.8 | 582 | 20.53 | 89% |
| APC SF 9x4.7 | 4.1 | 10.1 | 12.2 | 123 | 8220 | 36.6 | 600 | 21.16 | 87% |
| Aeronaut folder 9x5 | 4.1 | 10.2 | 11.6 | 118 | 7920 | 37.5 | 512 | 18.06 | 83% |
| Graupner SLIM 9x5 | 4.1 | 10.2 | 12.3 | 125 | 8400 | 39.8 | 532 | 18.77 | 88% |
| APC E 9x7.5 | 4.1 | 9.8 | 12.8 | 125 | 6390 | 45.4 | 422 | 14.89 | 69% |
| Aeronaut 9.5x6 | 4.1 | 9.2 | 11.3 | 103 | 6900 | 39.2 | 460 | 16.23 | 80% |
| Graupner CAM 10x4 | 4.1 | 10.3 | 10.2 | 105 | 8730 | 33.1 | 520 | 18.34 | 90% |
| APC SF 10x4.7 | 4.1 | 9.8 | 13 | 127 | 6500 | 28.9 | 660 | 23.28 | 71% |
| GWS HD 10x6 | 4.1 | 6.6 | 8.6 | 56 | 5430 | 30.9 | 374 | 13.19 | 88% |
| Aeronaut 10x7 | 4.1 | 8.8 | 13.6 | 119 | 6210 | 41.2 | 550 | 19.40 | 75% |
| APC E 11x5.5 | 4.1 | 8.7 | 13.4 | 116 | 6150 | 32.0 | 626 | 22.08 | 75% |
| GWS HD 11x7 | 4.1 | 6.4 | 11.4 | 72 | 4890 | 32.4 | 476 | 16.79 | 81% |
