GPS - B24-35-A
Specifications
- Type: Inrunner
- Weight: 60.00g (2.12oz)
- Diameter: 24.15mm (0.95in)
- Length: 37.15mm (1.46in)
- Shaft Diameter: 2.00mm (0.08in)
- Maximum Amps: 20
Constants
- kV: 5600
- Rm: 0.121
- Io: 2.33
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 10.05 | 2.33 | 54540 |

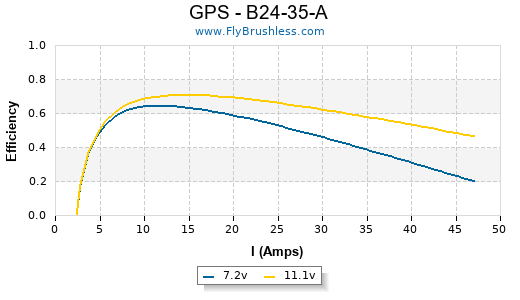

Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| Aeronaut 7x7 | 4.75 | 6.9 | 7.9 | 54 | 7020 | 46.5 | 197 | 6.95 | 86% |
| Aeronaut 7x7 | 4.75 | 7.9 | 9.6 | 75 | 7890 | 52.3 | 248 | 8.75 | 85% |
| Aeronaut 7x7 | 4.75 | 8.9 | 11.2 | 99 | 8790 | 58.3 | 307 | 10.83 | 84% |
| Aeronaut 7x7 | 4.75 | 9.9 | 13.2 | 130 | 9690 | 64.2 | 375 | 13.23 | 83% |
| Aeronaut 7x7 | 4.75 | 10.8 | 15.4 | 166 | 10560 | 70.0 | 450 | 15.87 | 83% |
| GWS HD 9x5 | 4.75 | 6.9 | 10.5 | 72 | 6720 | 31.8 | 448 | 15.80 | 83% |
| GWS HD 9x5 | 4.75 | 7.9 | 12.7 | 100 | 7530 | 35.6 | 570 | 20.11 | 81% |
| GWS HD 9x5 | 4.75 | 8.8 | 14.7 | 129 | 8340 | 39.5 | 692 | 24.41 | 80% |
| GWS HD 9x5 | 4.75 | 9.7 | 17.3 | 167 | 9090 | 43.0 | 848 | 29.91 | 79% |
