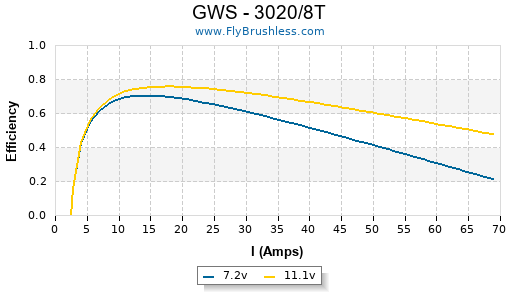

GWS - 3020/8T
Specifications
- Type: Outrunner
Constants
- kV: 855
- Rm: 0.082
- Io: 2.3
Io Test Data
Bruce Abbot test results
| Volts | Amps | RPM |
|---|---|---|
| 11.8 | 2.35 | 0 |
Test Data
Bruce Abbot test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 10x5 | 1 | 10.8 | 15.1 | 163 | 8061 | 38.2 | 0 | 0.00 | 87% |
| GWS EP 10x6 | 1 | 10.8 | 15.3 | 165 | 8061 | 45.8 | 0 | 0.00 | 87% |
| APC E 10x7 | 1 | 14.6 | 31.9 | 465 | 9964 | 66.0 | 0 | 0.00 | 80% |
| APC E 11x5.5 | 1 | 10.6 | 18.9 | 200 | 7557 | 39.4 | 0 | 0.00 | 83% |
| APC E 11x5.5 | 1 | 14.5 | 33 | 478 | 9787 | 51.0 | 0 | 0.00 | 79% |
| APC E 11x7 | 1 | 10.3 | 22.5 | 231 | 7040 | 46.7 | 0 | 0.00 | 80% |
| APC E 11x7 | 1 | 14.3 | 40.2 | 574 | 9233 | 61.2 | 0 | 0.00 | 76% |
| APC E 11x8.5 | 1 | 10.9 | 27 | 294 | 7197 | 57.9 | 0 | 0.00 | 77% |
| APC E 12x6 | 1 | 11 | 25.8 | 283 | 7331 | 41.6 | 0 | 0.00 | 78% |
| GWS HD 12x6 | 1 | 11.1 | 23.5 | 260 | 7663 | 43.5 | 0 | 0.00 | 81% |
| GWS HD 12x6 | 1 | 14.4 | 37.5 | 540 | 9493 | 53.9 | 0 | 0.00 | 77% |
| APC E 12x8 | 1 | 10.8 | 29.5 | 318 | 6896 | 52.2 | 0 | 0.00 | 75% |
| APC E 13x6.5 | 1 | 10.6 | 32.1 | 340 | 6841 | 42.1 | 0 | 0.00 | 75% |
| APC E 13x6.5 | 1 | 13.9 | 49.7 | 690 | 8235 | 50.7 | 0 | 0.00 | 69% |
| APC E 13x8 | 1 | 10.5 | 35.3 | 370 | 6524 | 49.4 | 0 | 0.00 | 73% |
