KEDA - B2040-17L
Specifications
- Type: Inrunner
Constants
- kV: 3420
- Rm: 0.114
- Io: 1.24
Io Test Data
Bruce Abbot test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.74 | 0 |
| 10.5 | 1.24 | 35026 |

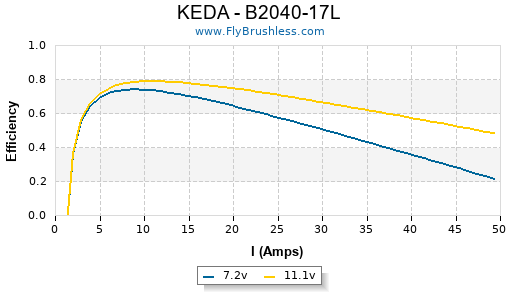

Test Data
Bruce Abbot test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| Hyperflow 55 0x0 | 1 | 10.5 | 11.9 | 124 | 31148 | 0.0 | 333 | 11.75 | 87% |
| GWS EDF55 x6 2.2x4.5 | 1 | 10.5 | 12.6 | 132 | 30510 | 130.0 | 335 | 11.82 | 85% |
| GWS EDF64 x6 2.5x4 | 1 | 10.5 | 14.3 | 150 | 29476 | 111.7 | 397 | 14.00 | 82% |
| GWS EP 4x2.5 | 1 | 7 | 7.6 | 53 | 21870 | 51.8 | 195 | 6.88 | 91% |
| GWS EP 4.5x3 | 1 | 7 | 10.9 | 76 | 19040 | 54.1 | 194 | 6.84 | 80% |
