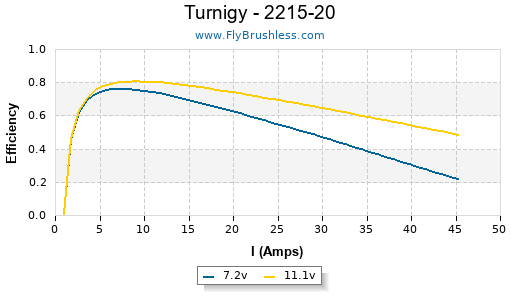

Turnigy - 2215-20
Specifications
- Type: Outrunner
Constants
- kV: 1254
- Rm: 0.124
- Io: 0.95
Io Test Data
Bruce Abbot test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.95 | 0 |
| 10.5 | 1.25 | 0 |
Test Data
Bruce Abbot test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC SF 7x4 | 1 | 10.5 | 9.9 | 103 | 11318 | 42.9 | 566 | 19.97 | 86% |
| GWS EP 8x4 | 1 | 10.5 | 11 | 115 | 11147 | 42.2 | 701 | 24.73 | 85% |
| GWS HD 8x6 | 1 | 7 | 8.36 | 58 | 7346 | 41.7 | 397 | 14.00 | 84% |
| GWS HD 8x6 | 1 | 10.3 | 15.5 | 159 | 10027 | 57.0 | 747 | 26.35 | 78% |
| GWS HD 9x7.5 | 1 | 7 | 14.1 | 98 | 6414 | 45.5 | 523 | 18.45 | 73% |
| GWS EP 10x6 | 1 | 7 | 13.4 | 93 | 6524 | 37.1 | 640 | 22.58 | 74% |
| GWS HD 10x8 | 1 | 7 | 18.4 | 128 | 5674 | 43.0 | 600 | 21.16 | 65% |
