Suppo - A1510
Specifications
- Type: Outrunner
- Weight: 16.00g (0.56oz)
- Diameter: 18.05mm (0.71in)
- Length: 19.60mm (0.77in)
- Shaft Diameter: 2.00mm (0.08in)
- Maximum Amps: 6

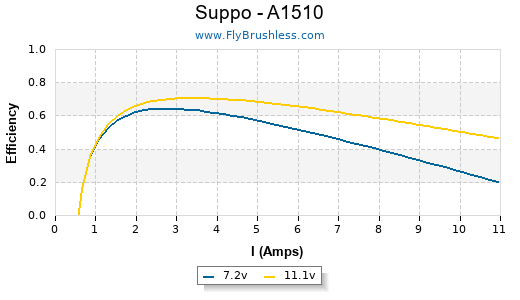

Constants
- kV: 2230
- Rm: 0.52
- Io: 0.55
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.45 | 15150 |
| 8 | 0.5 | 17280 |
| 10 | 0.55 | 21660 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS DD 4x2.5 | 1 | 7 | 2 | 14 | 13590 | 32.2 | 87 | 3.07 | 87% |
| GWS DD 4x2.5 | 1 | 7.9 | 2.4 | 18 | 15240 | 36.1 | 108 | 3.81 | 87% |
| GWS DD 4x2.5 | 1 | 8.9 | 2.9 | 25 | 16800 | 39.8 | 133 | 4.69 | 85% |
| GWS DD 4x2.5 | 1 | 9.9 | 3.4 | 33 | 18390 | 43.5 | 160 | 5.64 | 83% |
| GWS DD 4x2.5 | 1 | 10.9 | 3.85 | 41 | 19920 | 47.2 | 187 | 6.60 | 82% |
| GWS HD 4.5x3 | 1 | 7 | 2.65 | 18 | 12900 | 36.6 | 115 | 4.06 | 83% |
| GWS HD 4.5x3 | 1 | 7.9 | 3.25 | 25 | 14370 | 40.8 | 145 | 5.11 | 82% |
| GWS HD 4.5x3 | 1 | 8.9 | 3.9 | 34 | 15690 | 44.6 | 174 | 6.14 | 79% |
| GWS HD 4.5x3 | 1 | 9.9 | 4.55 | 45 | 16920 | 48.1 | 206 | 7.27 | 77% |
| GWS HD 4.5x3 | 1 | 10.9 | 5.25 | 57 | 18120 | 51.5 | 233 | 8.22 | 75% |
| GWS HD 4.5x4 | 1 | 7 | 3.35 | 23 | 12180 | 46.1 | 133 | 4.69 | 78% |
| GWS HD 4.5x4 | 1 | 7.4 | 3.65 | 27 | 12660 | 48.0 | 144 | 5.08 | 77% |
| GWS HD 4.5x4 | 1 | 7.9 | 3.95 | 31 | 13320 | 50.5 | 160 | 5.64 | 76% |
| GWS HD 4.5x4 | 1 | 8.9 | 4.75 | 42 | 14760 | 55.9 | 193 | 6.81 | 74% |
| GWS HD 4.5x4 | 1 | 9.9 | 5.45 | 53 | 15840 | 60.0 | 231 | 8.15 | 72% |
| GWS HD 4.5x4 | 1 | 10.9 | 6 | 65 | 16950 | 64.2 | 261 | 9.21 | 70% |
| Gunther 4.92x4.33 | 1 | 7 | 4.85 | 33 | 10740 | 44.0 | 176 | 6.21 | 69% |
| Gunther 4.92x4.33 | 1 | 7.4 | 5.05 | 37 | 11010 | 45.1 | 183 | 6.46 | 67% |
| GWS HD 5x3 | 1 | 7 | 3 | 21 | 12540 | 35.6 | 146 | 5.15 | 80% |
| GWS HD 5x3 | 1 | 7.4 | 3.25 | 24 | 13110 | 37.2 | 159 | 5.61 | 79% |
| GWS HD 5x3 | 1 | 7.9 | 3.6 | 28 | 13860 | 39.4 | 177 | 6.24 | 79% |
| GWS HD 5x3 | 1 | 8.9 | 4.3 | 38 | 15210 | 43.2 | 213 | 7.51 | 77% |
| GWS HD 5x3 | 1 | 9.9 | 4.95 | 49 | 16440 | 46.7 | 250 | 8.82 | 74% |
| GWS HD 5x3 | 1 | 10.9 | 5.55 | 60 | 17580 | 49.9 | 282 | 9.95 | 72% |
| APC E (Broad) 5.1x4.5 | 1 | 7 | 5.6 | 39 | 9960 | 42.4 | 174 | 6.14 | 64% |
| APC E (Broad) 5.1x4.5 | 1 | 7.4 | 5.8 | 42 | 10140 | 43.2 | 180 | 6.35 | 61% |
| APC FF 5.7x3 | 1 | 7 | 4.4 | 30 | 11010 | 31.3 | 164 | 5.78 | 71% |
| APC FF 5.7x3 | 1 | 7.4 | 4.7 | 34 | 11400 | 32.4 | 177 | 6.24 | 69% |
| GWS HD 6x3 | 1 | 7 | 4.15 | 29 | 11190 | 31.8 | 193 | 6.81 | 72% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 6x3 | 1 | 7.4 | 4.45 | 32 | 11670 | 33.1 | 209 | 7.37 | 71% |
Comments
Dr Kiwi on 2011-01-14 08:34:31
Stator 9-arm, 12-pole
Jim Moffatt on 2012-02-28 07:56:13
I am using this motor in a Hobby King Mini-Swift. Using the Mini-Swift 5.3" x 3.1" folding prop I get 12,800 rpm with a 2S 350 mah battery. Current is approx 3.8A. It works very well and does verticals with this 5 oz plane.
