Suppo - A1504 (~3300Kv) Motor #2
Specifications
- Type: Outrunner
- Weight: 10.00g (0.35oz)
- Diameter: 18.05mm (0.71in)
- Length: 13.70mm (0.54in)
- Shaft Diameter: 2.00mm (0.08in)
- Maximum Amps: 4

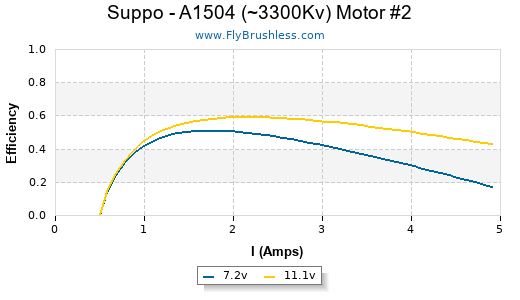

Constants
- kV: 3300
- Rm: 1.19
- Io: 0.5
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.4 | 21630 |
| 8 | 0.45 | 24750 |
| 10 | 0.5 | 30900 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| Graupner CAM 3x3 | 1 | 7 | 2.2 | 15 | 14550 | 41.3 | 56 | 1.98 | 63% |
| Graupner CAM 3x3 | 1 | 7.4 | 2.35 | 17 | 15120 | 43.0 | 61 | 2.15 | 62% |
| Graupner CAM 3x3 | 1 | 7.9 | 2.55 | 20 | 15780 | 44.8 | 67 | 2.36 | 61% |
| Graupner CAM 3x3 | 1 | 9 | 2.95 | 26 | 17010 | 48.3 | 79 | 2.79 | 57% |
| Graupner CAM 3x3 | 1 | 9.9 | 3.3 | 32 | 18060 | 51.3 | 89 | 3.14 | 55% |
| Graupner CAM 3x3 | 1 | 10.9 | 3.65 | 39 | 19080 | 54.2 | 99 | 3.49 | 53% |
Comments
Dr Kiwi on 2011-01-14 08:35:34
Stator 9-arm, 12-pole
