Suppo - A1504 (~3125Kv) Motor #1
Specifications
- Type: Outrunner
- Weight: 10.00g (0.35oz)
- Diameter: 18.05mm (0.71in)
- Length: 13.70mm (0.54in)
- Shaft Diameter: 2.00mm (0.08in)
- Maximum Amps: 4

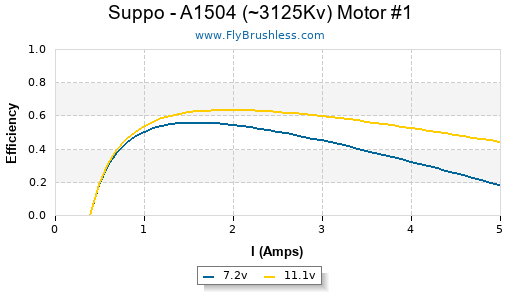

Constants
- kV: 3125
- Rm: 1.16
- Io: 0.4
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.3 | 20790 |
| 8 | 0.35 | 23820 |
| 10 | 0.4 | 29760 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS DD 4x2.5 | 1 | 7 | 2.3 | 16 | 13320 | 31.5 | 82 | 2.89 | 61% |
| GWS DD 4x2.5 | 1 | 7.4 | 2.5 | 18 | 13830 | 32.7 | 88 | 3.10 | 60% |
| GWS HD 4.5x3 | 1 | 7 | 2.8 | 19 | 11700 | 33.2 | 93 | 3.28 | 53% |
| GWS HD 4.5x3 | 1 | 7.4 | 2.9 | 21 | 12030 | 34.2 | 97 | 3.42 | 52% |
| GWS HD 4.5x4 | 1 | 7 | 3.3 | 23 | 10230 | 38.8 | 92 | 3.25 | 47% |
| GWS HD 4.5x4 | 1 | 7.4 | 3.5 | 25 | 10470 | 39.7 | 96 | 3.39 | 45% |
| GWS HD 5x3 | 1 | 7 | 3 | 21 | 10920 | 31.0 | 108 | 3.81 | 50% |
| GWS HD 5x3 | 1 | 7.4 | 3.2 | 23 | 11220 | 31.9 | 115 | 4.06 | 49% |
Comments
Dr Kiwi on 2011-01-14 08:35:07
Stator 9-arm, 12-pole
