Turnigy - SK 3530-1400
Specifications
- Type: Outrunner
- Weight: 84.00g (2.96oz)
- Diameter: 35.00mm (1.38in)
- Length: 30.00mm (1.18in)
- Shaft Diameter: 4.00mm (0.16in)
- Maximum Amps: 30

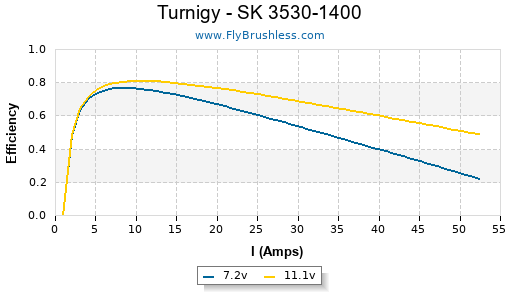

Constants
- kV: 1290
- Rm: 0.107
- Io: 1.05
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.85 | 8910 |
| 8 | 0.95 | 10140 |
| 10 | 1.05 | 12600 |
| 12 | 1.15 | 15060 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 7x5 | 1 | 6.9 | 6.2 | 42 | 8130 | 38.5 | 286 | 10.09 | 91% |
| APC E 7x5 | 1 | 7.9 | 7.65 | 60 | 9150 | 43.3 | 370 | 13.05 | 90% |
| APC E 7x5 | 1 | 8.8 | 9.25 | 81 | 10110 | 47.9 | 468 | 16.51 | 89% |
| APC E 7x5 | 1 | 9.8 | 10.95 | 107 | 11100 | 52.6 | 565 | 19.93 | 88% |
| APC E 7x5 | 1 | 10.8 | 12.6 | 136 | 12000 | 56.8 | 669 | 23.60 | 86% |
| APC E 8x4 | 1 | 6.9 | 7.55 | 52 | 7920 | 30.0 | 398 | 14.04 | 89% |
| APC E 8x4 | 1 | 7.8 | 9.4 | 73 | 8880 | 33.6 | 512 | 18.06 | 88% |
| APC E 8x4 | 1 | 8.8 | 11.6 | 102 | 9810 | 37.2 | 632 | 22.29 | 86% |
| APC E 8x4 | 1 | 9.8 | 14.15 | 138 | 10620 | 40.2 | 744 | 26.24 | 84% |
| APC E 8x4 | 1 | 10.8 | 15.9 | 171 | 11520 | 43.6 | 888 | 31.32 | 83% |
| APC E 8x6 | 1 | 6.8 | 11.2 | 76 | 7410 | 42.1 | 417 | 14.71 | 84% |
| APC E 8x6 | 1 | 7.8 | 13.9 | 108 | 8280 | 47.0 | 531 | 18.73 | 82% |
| APC E 8x6 | 1 | 8.8 | 16.65 | 146 | 9090 | 51.6 | 658 | 23.21 | 80% |
| APC E 8x6 | 1 | 9.7 | 19.5 | 189 | 9840 | 55.9 | 788 | 27.80 | 79% |
| APC E 8x6 | 1 | 10.6 | 22.7 | 240 | 10500 | 59.7 | 900 | 31.75 | 77% |
| APC E 8x8 | 1 | 6.8 | 14.2 | 96 | 6990 | 53.0 | 403 | 14.22 | 80% |
| APC E 8x8 | 1 | 7.7 | 17.2 | 132 | 7770 | 58.9 | 502 | 17.71 | 78% |
| APC E 8x8 | 1 | 8.7 | 20.5 | 178 | 8580 | 65.0 | 608 | 21.45 | 76% |
| APC E 8x8 | 1 | 11 | 27.9 | 306 | 9870 | 74.8 | 819 | 28.89 | 70% |
| APC E 8x8 | 1 | 11.2 | 30 | 336 | 9960 | 75.5 | 863 | 30.44 | 69% |
| APC E 9x4.5 | 1 | 6.8 | 10.4 | 70 | 7500 | 32.0 | 543 | 19.15 | 85% |
| APC E 9x4.5 | 1 | 7.8 | 12.95 | 101 | 8370 | 35.7 | 686 | 24.20 | 83% |
| APC E 9x4.5 | 1 | 8.7 | 15.55 | 135 | 9210 | 39.2 | 835 | 29.45 | 82% |
| APC E 9x4.5 | 1 | 9.7 | 18.4 | 178 | 9990 | 42.6 | 983 | 34.67 | 80% |
| APC E 9x4.5 | 1 | 10.6 | 21.3 | 225 | 10650 | 45.4 | 1137 | 40.11 | 78% |
| APC E 9x4.5 | 1 | 12.6 | 27.7 | 349 | 11790 | 50.2 | 1446 | 51.01 | 73% |
| APC E 9x4.5 | 1 | 12.9 | 28.6 | 368 | 12090 | 51.5 | 1521 | 53.65 | 73% |
| GWS HD 9x5 | 1 | 6.8 | 10.4 | 70 | 7470 | 35.4 | 552 | 19.47 | 85% |
| GWS HD 9x5 | 1 | 7.8 | 12.85 | 100 | 8370 | 39.6 | 696 | 24.55 | 83% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 9x5 | 1 | 8.7 | 15.6 | 135 | 9180 | 43.5 | 852 | 30.05 | 82% |
| GWS HD 9x5 | 1 | 9.7 | 18.4 | 178 | 9990 | 47.3 | 1006 | 35.49 | 80% |
| GWS HD 9x5 | 1 | 10.6 | 21.2 | 224 | 10680 | 50.6 | 1170 | 41.27 | 78% |
