Turnigy - SK3530-1400

Show Similiar


Specifications

  • Type: Outrunner
  • Weight: 112.00g (3.95oz)
  • Diameter: 35.00mm (1.38in)
  • Length: 30.00mm (1.18in)
  • Shaft Diameter: 4.00mm (0.16in)
  • Maximum Amps: 32
  • Maximum RPM: 20000

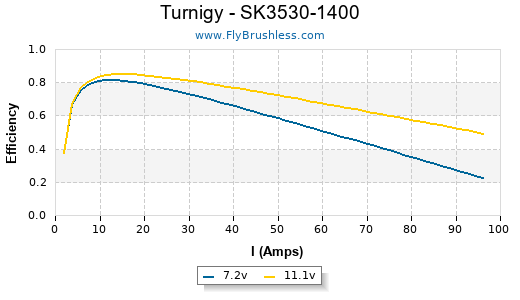

Constants

  • kV: 1400
  • Rm: 0.058
  • Io: 1.2



Io Test Data

mark_q test results
Volts Amps RPM
12.1 0.98 14750

Test Data

mark_q test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC E 9x6 1 11.23 28.01 314 10300 58.0 1247 43.99 66%
APC SF 10x4.7 1 10.86 35.22 382 9050 40.0 1446 51.01 60%
APC E 10x5 1 11.14 29.24 325 10050 47.0 1588 56.02 64%
Zoar 11x5 1 11.02 32.19 354 9600 45.0 1616 57.00 62%

Comments

mark_q on 2009-09-03 18:00:19
Please excuse the confusion as the values for thrust are not correct. The original values were in oz but were put in the "Thrust (g)" column. It should read:

APC E 9x6 1247g/44oz
APC SF 10x4.7 1588g/56oz
APC E 10x5 1446g/51oz
Zoar 11x5 1616g/57oz

-Mark
Heliosupersi on 2010-10-28 08:34:12
Hi Robert
I have one of these on order and will have some test results with a 3 Blade prop very shortly.
If I am not telling my grandmother to suck eggs this motor as with many others comes in various guises.XYH35-30 1400kv 15A and PPO-3530-1400 to name but two.
Great Web Site !
Keep up the good work
Jon
Heliosupersi on 2010-10-29 13:20:04
Mine is sold as an XYH35-30 1400kv 15A and weighs 77 grams.Question your 112 grams.
Got it on test as soon as it arrived. Battery EVO 25 3s1p 3700, ESC GWS 40A,Prop GWS 8x4 3 Blade reverse rotation. Got 11,700 RPM @ 198 Watts, 19.7 Amps, 10.1 Volts. Then I tried a 3 Blade Master Airscrew normal rotation 7x4. Got 12,220 RPM @ 151 Watts, 15.4 Amps, 9.8 Volts.
No thrust data yet, building a rig.
Cheers
Jon
Heliosupersi on 2010-11-18 11:25:11
Correction mine is equivalent to a TR3536 B 1400
Not a SK3530-1400

Sorry for the error

Jon
