AXI - 2826/10
Specifications
- Type: Outrunner
- Weight: 181.44g (6.40oz)
- Diameter: 34.92mm (1.37in)
- Length: 57.15mm (2.25in)
- Shaft Diameter: 5.00mm (0.20in)
- Maximum Amps: 30

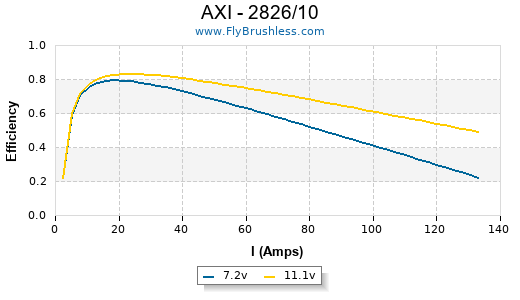

Constants
- kV: 920
- Rm: 0.042
- Io: 2.08
Io Test Data
mark_q test results
| Volts | Amps | RPM |
|---|---|---|
| 15.83 | 2.08 | 14750 |
Test Data
mark_q test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 9x6 | 1 | 14.86 | 29.61 | 440 | 11750 | 66.0 | 1673 | 59.01 | 86% |
| APC E 10x7 | 1 | 14.9 | 38.66 | 576 | 11200 | 74.0 | 2098 | 74.00 | 82% |
| Zoar 11x5 | 1 | 15.08 | 35.59 | 536 | 11550 | 54.0 | 2353 | 83.00 | 83% |
| APC E 11x7 | 1 | 14.79 | 49.68 | 734 | 10400 | 68.0 | 2325 | 82.01 | 76% |
Comments
mark_q on 2009-09-03 17:54:01
Please excuse the confusion as the values for thrust are not correct. The original values were in oz but were put in the "Thrust (g)" column. It should read:
APC E 9x6 1673g/59oz
APC E 10x7 2098g/74oz
Zoar 11x5 2353g/83oz
APC E 11x7 2325g/82oz
-Mark
APC E 9x6 1673g/59oz
APC E 10x7 2098g/74oz
Zoar 11x5 2353g/83oz
APC E 11x7 2325g/82oz
-Mark
rgoble on 2009-09-09 21:04:04
Sorry about that, it was a mistake on my part when I was entering his data. It is now fixed.
Robert
