Mega - Acn 22/30/3
Specifications
- Type: Inrunner
- Weight: 286.00g (10.09oz)
- Diameter: 36.00mm (1.42in)
- Length: 102.00mm (4.02in)
- Shaft Diameter: 6.35mm (0.25in)
- Maximum Amps: 70
- Maximum RPM: 44000

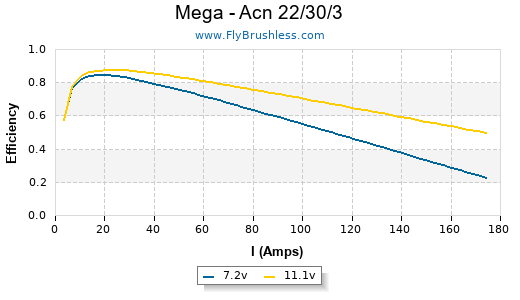

Constants
- kV: 1270
- Rm: 0.032
- Io: 1.46
Io Test Data
mark_q test results
| Volts | Amps | RPM |
|---|---|---|
| 16.27 | 1.5 | 22150 |
Test Data
mark_q test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 12x6 | 2 | 15.21 | 28.4 | 431 | 8669 | 49.0 | 1981 | 69.88 | 90% |
| APC E 13x6.5 | 2 | 14.81 | 36.3 | 537 | 7968 | 49.0 | 2395 | 84.48 | 85% |
| APC E 13x8 | 2 | 14.7 | 40.1 | 589 | 7768 | 59.0 | 2455 | 86.60 | 83% |
| APC E 14x7 | 2 | 14.46 | 44.8 | 647 | 7357 | 49.0 | 2353 | 83.00 | 80% |
Comments
mark_q on 2009-09-04 23:09:12
All tests were done with an MEC SuperBox at 2:1
RPM shown is at the prop
Temp is Ambient
RPM shown is at the prop
Temp is Ambient
mark_q on 2009-09-04 23:11:19
No-load RPM is with no gearbox
