Grayson - MicroJet V3
Specifications
- Type: Outrunner
- Weight: 39.00g (1.38oz)
- Diameter: 27.68mm (1.09in)
- Length: 22.83mm (0.90in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 20

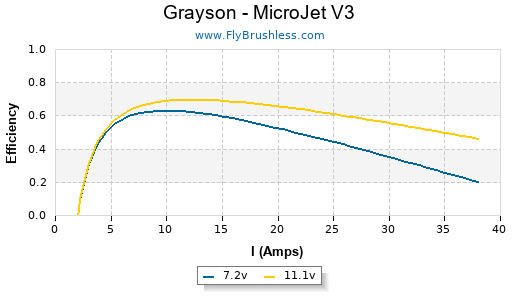

Constants
- kV: 2300
- Rm: 0.15
- Io: 2.05
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 1.9 | 15420 |
| 8 | 1.95 | 17610 |
| 10 | 2.05 | 22350 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| EMP 4.1x4.1 | 1 | 6.9 | 6.1 | 42 | 14070 | 54.6 | 133 | 4.69 | 89% |
| EMP 4.1x4.1 | 1 | 7.9 | 7.05 | 55 | 15870 | 61.6 | 172 | 6.07 | 87% |
| EMP 4.1x4.1 | 1 | 8.8 | 8.35 | 73 | 17490 | 67.9 | 209 | 7.37 | 86% |
| EMP 4.1x4.1 | 1 | 9.8 | 9.65 | 94 | 19200 | 74.5 | 253 | 8.92 | 85% |
| EMP 4.1x4.1 | 1 | 10.8 | 11.2 | 120 | 20760 | 80.6 | 298 | 10.51 | 84% |
| Graupner CAM 4.7x4.7 | 1 | 6.8 | 7.8 | 53 | 13500 | 60.1 | 172 | 6.07 | 86% |
| Graupner CAM 4.7x4.7 | 1 | 7.8 | 9.3 | 72 | 15150 | 67.4 | 218 | 7.69 | 84% |
| Graupner CAM 4.7x4.7 | 1 | 8.8 | 10.85 | 95 | 16650 | 74.1 | 270 | 9.52 | 82% |
| Graupner CAM 4.7x4.7 | 1 | 9.7 | 12.55 | 121 | 18240 | 81.2 | 322 | 11.36 | 82% |
| Graupner CAM 4.7x4.7 | 1 | 10.7 | 14.4 | 154 | 19650 | 87.5 | 376 | 13.26 | 80% |
| APC E 5x5 | 1 | 6.8 | 9.05 | 61 | 13170 | 62.4 | 177 | 6.24 | 84% |
| APC E 5x5 | 1 | 7.8 | 10.8 | 84 | 14670 | 69.5 | 221 | 7.80 | 82% |
| APC E 5x5 | 1 | 8.8 | 12.7 | 111 | 16140 | 76.4 | 270 | 9.52 | 80% |
| APC E 5x5 | 1 | 9.7 | 14.8 | 143 | 17550 | 83.1 | 323 | 11.39 | 79% |
| APC E 5x5 | 1 | 10.7 | 16.8 | 179 | 18810 | 89.1 | 374 | 13.19 | 76% |
| EMP 5x5 | 1 | 6.8 | 9.25 | 62 | 13110 | 62.1 | 250 | 8.82 | 84% |
| EMP 5x5 | 1 | 7.8 | 11.1 | 86 | 14580 | 69.0 | 312 | 11.01 | 81% |
| EMP 5x5 | 1 | 8.7 | 13 | 113 | 15990 | 75.7 | 378 | 13.33 | 80% |
| EMP 5x5 | 1 | 9.7 | 15.2 | 147 | 17340 | 82.1 | 447 | 15.77 | 78% |
| EMP 5x5 | 1 | 10.7 | 17.45 | 186 | 18540 | 87.8 | 515 | 18.17 | 75% |
| Maxx 5x5 | 1 | 6.8 | 9.6 | 65 | 13020 | 61.6 | 244 | 8.61 | 83% |
| Maxx 5x5 | 1 | 7.8 | 11.7 | 91 | 14460 | 68.5 | 306 | 10.79 | 81% |
| Maxx 5x5 | 1 | 8.8 | 13.85 | 121 | 15840 | 75.0 | 371 | 13.09 | 78% |
| Maxx 5x5 | 1 | 9.7 | 15.9 | 154 | 17070 | 80.8 | 434 | 15.31 | 77% |
| Maxx 5x5 | 1 | 10.6 | 18.2 | 192 | 18360 | 86.9 | 505 | 17.81 | 75% |
| Zagi Carbon 5.1x4.9 | 1 | 6.9 | 9 | 62 | 13230 | 61.4 | 252 | 8.89 | 83% |
| Zagi Carbon 5.1x4.9 | 1 | 7.8 | 10.85 | 84 | 14760 | 68.5 | 319 | 11.25 | 82% |
| Zagi Carbon 5.1x4.9 | 1 | 8.8 | 12.8 | 112 | 16170 | 75.0 | 384 | 13.55 | 80% |
| Zagi Carbon 5.1x4.9 | 1 | 9.8 | 14.85 | 145 | 17520 | 81.3 | 453 | 15.98 | 78% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| Zagi Carbon 5.1x4.9 | 1 | 10.7 | 16.95 | 181 | 18900 | 87.7 | 515 | 18.17 | 77% |
| Graupner CAM 5.2x5.2 | 1 | 6.8 | 10.1 | 68 | 12900 | 63.5 | 232 | 8.18 | 82% |
| Graupner CAM 5.2x5.2 | 1 | 7.8 | 12.1 | 94 | 14280 | 70.3 | 288 | 10.16 | 80% |
| Graupner CAM 5.2x5.2 | 1 | 8.7 | 14.2 | 123 | 15660 | 77.1 | 348 | 12.28 | 78% |
| Graupner CAM 5.2x5.2 | 1 | 9.7 | 16.5 | 160 | 16950 | 83.5 | 414 | 14.60 | 76% |
| Graupner CAM 5.2x5.2 | 1 | 10.6 | 18.8 | 199 | 18180 | 89.5 | 477 | 16.83 | 75% |
| APC E 6x4 | 1 | 6.8 | 10.7 | 72 | 12750 | 48.3 | 318 | 11.22 | 82% |
| APC E 6x4 | 1 | 7.8 | 12.8 | 99 | 14160 | 53.6 | 402 | 14.18 | 79% |
| APC E 6x4 | 1 | 8.7 | 14.95 | 130 | 15480 | 58.6 | 486 | 17.14 | 77% |
| APC E 6x4 | 1 | 9.7 | 17.25 | 167 | 16650 | 63.1 | 571 | 20.14 | 75% |
| APC E 6x4 | 1 | 10.7 | 19.8 | 211 | 17970 | 68.1 | 669 | 23.60 | 73% |
