KEDA - TR2830/18
Specifications
- Type: Outrunner
- Weight: 60.00g (2.12oz)
- Diameter: 28.00mm (1.10in)
- Length: 30.00mm (1.18in)
- Shaft Diameter: 3.17mm (0.12in)
- Maximum Amps: 18

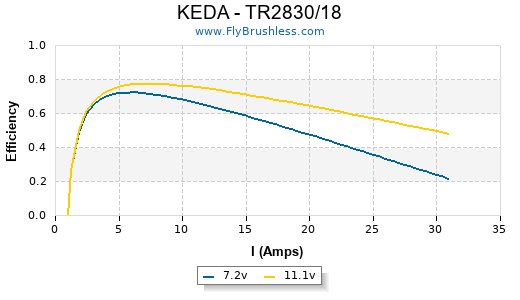

Constants
- kV: 1315
- Rm: 0.182
- Io: 0.9
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.8 | 9010 |
| 8 | 0.85 | 10230 |
| 10 | 0.9 | 12700 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 8x4 | 1 | 6.9 | 5.8 | 40 | 7920 | 30.0 | 338 | 11.92 | 87% |
| GWS HD 8x4 | 1 | 6.9 | 5.8 | 40 | 7920 | 30.0 | 338 | 11.92 | 87% |
| GWS HD 8x4 | 1 | 7.9 | 7.1 | 56 | 8850 | 33.5 | 428 | 15.10 | 85% |
| GWS HD 8x4 | 1 | 7.9 | 7.1 | 56 | 8850 | 33.5 | 428 | 15.10 | 85% |
| GWS HD 8x4 | 1 | 8.8 | 8.5 | 74 | 9690 | 36.7 | 521 | 18.38 | 84% |
| GWS HD 8x4 | 1 | 8.8 | 8.5 | 74 | 9690 | 36.7 | 521 | 18.38 | 84% |
| GWS HD 8x4 | 1 | 9.8 | 9.95 | 97 | 10530 | 39.9 | 615 | 21.69 | 82% |
| GWS HD 8x4 | 1 | 9.8 | 9.95 | 97 | 10530 | 39.9 | 615 | 21.69 | 82% |
| GWS HD 8x4 | 1 | 10.8 | 11.5 | 124 | 11370 | 43.1 | 726 | 25.61 | 80% |
| GWS HD 8x4 | 1 | 10.8 | 11.5 | 124 | 11370 | 43.1 | 726 | 25.61 | 80% |
| GWS HD 8x4 | 1 | 14 | 17.15 | 240 | 13620 | 51.6 | 1085 | 38.27 | 74% |
| GWS HD 8x4 | 1 | 14 | 17.15 | 240 | 13620 | 51.6 | 1085 | 38.27 | 74% |
| GWS HD 9x5 | 1 | 6.9 | 9.4 | 64 | 7170 | 34.0 | 506 | 17.85 | 79% |
| GWS HD 9x5 | 1 | 6.9 | 9.4 | 64 | 7170 | 34.0 | 506 | 17.85 | 79% |
| GWS HD 9x5 | 1 | 7.8 | 11.35 | 88 | 7920 | 37.5 | 624 | 22.01 | 77% |
| GWS HD 9x5 | 1 | 7.8 | 11.35 | 88 | 7920 | 37.5 | 624 | 22.01 | 77% |
| GWS HD 9x5 | 1 | 8.8 | 13.5 | 118 | 8640 | 40.9 | 748 | 26.38 | 75% |
| GWS HD 9x5 | 1 | 8.8 | 13.5 | 118 | 8640 | 40.9 | 748 | 26.38 | 75% |
| GWS HD 9x5 | 1 | 9.7 | 15.55 | 150 | 9240 | 43.8 | 860 | 30.34 | 72% |
| GWS HD 9x5 | 1 | 9.7 | 15.55 | 150 | 9240 | 43.8 | 860 | 30.34 | 72% |
| GWS HD 9x5 | 1 | 10.7 | 17.6 | 188 | 9840 | 46.6 | 970 | 34.22 | 70% |
| GWS HD 9x5 | 1 | 10.7 | 17.6 | 188 | 9840 | 46.6 | 970 | 34.22 | 70% |
| GWS HD 10x6 | 1 | 6.8 | 12.2 | 82 | 6540 | 37.2 | 600 | 21.16 | 73% |
| GWS HD 10x6 | 1 | 6.8 | 12.2 | 82 | 6540 | 37.2 | 600 | 21.16 | 73% |
| GWS HD 10x6 | 1 | 7.7 | 14.55 | 112 | 7200 | 40.9 | 722 | 25.47 | 71% |
| GWS HD 10x6 | 1 | 7.7 | 14.55 | 112 | 7200 | 40.9 | 722 | 25.47 | 71% |
| GWS HD 10x6 | 1 | 8.7 | 17 | 147 | 7770 | 44.1 | 851 | 30.02 | 68% |
| GWS HD 10x6 | 1 | 8.7 | 17 | 147 | 7770 | 44.1 | 851 | 30.02 | 68% |
| GWS HD 10x6 | 1 | 9.6 | 19.3 | 185 | 8220 | 46.7 | 950 | 33.51 | 65% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 10x6 | 1 | 9.6 | 19.3 | 185 | 8220 | 46.7 | 950 | 33.51 | 65% |
| GWS HD 10x6 | 1 | 10.6 | 21.7 | 230 | 8760 | 49.8 | 1088 | 38.38 | 63% |
| GWS HD 10x6 | 1 | 10.6 | 21.7 | 230 | 8760 | 49.8 | 1088 | 38.38 | 63% |
