Motrolfly - 2203-1600 v2
Specifications
- Type: Outrunner
- Weight: 18.00g (0.63oz)
- Diameter: 28.00mm (1.10in)
- Length: 13.70mm (0.54in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 7

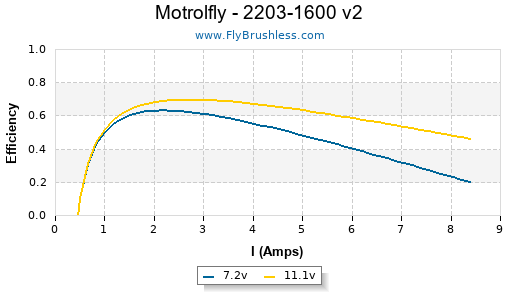

Constants
- kV: 1645
- Rm: 0.68
- Io: 0.45
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.45 | 11100 |
| 8 | 0.45 | 12650 |
| 10 | 0.45 | 15900 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 6x3 | 1 | 6.9 | 2.3 | 15 | 9030 | 25.6 | 128 | 4.52 | 80% |
| GWS HD 6x3 | 1 | 6.9 | 2.3 | 15 | 9030 | 25.6 | 128 | 4.52 | 80% |
| GWS HD 6x3 | 1 | 7.9 | 2.85 | 22 | 10140 | 28.8 | 164 | 5.78 | 78% |
| GWS HD 6x3 | 1 | 7.9 | 2.85 | 22 | 10140 | 28.8 | 164 | 5.78 | 78% |
| GWS HD 6x3 | 1 | 8.9 | 3.35 | 29 | 11130 | 31.6 | 200 | 7.05 | 76% |
| GWS HD 6x3 | 1 | 8.9 | 3.35 | 29 | 11130 | 31.6 | 200 | 7.05 | 76% |
| GWS HD 6x3 | 1 | 9.9 | 3.9 | 38 | 12060 | 34.3 | 238 | 8.40 | 74% |
| GWS HD 6x3 | 1 | 9.9 | 3.9 | 38 | 12060 | 34.3 | 238 | 8.40 | 74% |
| GWS HD 6x3 | 1 | 10.9 | 4.3 | 46 | 12960 | 36.8 | 277 | 9.77 | 72% |
| GWS HD 6x3 | 1 | 10.9 | 4.3 | 46 | 12960 | 36.8 | 277 | 9.77 | 72% |
| GWS RS 6x5 | 1 | 6.9 | 4.1 | 28 | 7410 | 35.1 | 150 | 5.29 | 65% |
| GWS RS 6x5 | 1 | 6.9 | 4.1 | 28 | 7410 | 35.1 | 150 | 5.29 | 65% |
| GWS RS 6x5 | 1 | 7.9 | 4.75 | 37 | 8040 | 38.1 | 180 | 6.35 | 62% |
| GWS RS 6x5 | 1 | 7.9 | 4.75 | 37 | 8040 | 38.1 | 180 | 6.35 | 62% |
| GWS RS 6x5 | 1 | 8.9 | 5.4 | 48 | 8550 | 40.5 | 205 | 7.23 | 58% |
| GWS RS 6x5 | 1 | 8.9 | 5.4 | 48 | 8550 | 40.5 | 205 | 7.23 | 58% |
| GWS RS 6x5 | 1 | 9.8 | 6.15 | 60 | 9000 | 42.6 | 235 | 8.29 | 56% |
| GWS RS 6x5 | 1 | 9.8 | 6.15 | 60 | 9000 | 42.6 | 235 | 8.29 | 56% |
| GWS RS 6x5 | 1 | 10.8 | 7 | 75 | 9420 | 44.6 | 258 | 9.10 | 53% |
| GWS RS 6x5 | 1 | 10.8 | 7 | 75 | 9420 | 44.6 | 258 | 9.10 | 53% |
| GWS HD 7x3.5 | 1 | 6.9 | 3 | 20 | 8430 | 27.9 | 147 | 5.19 | 74% |
| GWS HD 7x3.5 | 1 | 6.9 | 3 | 20 | 8430 | 27.9 | 147 | 5.19 | 74% |
| GWS HD 7x3.5 | 1 | 7.9 | 3.6 | 28 | 9330 | 30.9 | 184 | 6.49 | 72% |
| GWS HD 7x3.5 | 1 | 7.9 | 3.6 | 28 | 9330 | 30.9 | 184 | 6.49 | 72% |
| GWS HD 7x3.5 | 1 | 8.9 | 4.2 | 37 | 10170 | 33.7 | 224 | 7.90 | 69% |
| GWS HD 7x3.5 | 1 | 8.9 | 4.2 | 37 | 10170 | 33.7 | 224 | 7.90 | 69% |
| GWS HD 7x3.5 | 1 | 9.9 | 4.8 | 47 | 10980 | 36.4 | 271 | 9.56 | 67% |
| GWS HD 7x3.5 | 1 | 9.9 | 4.8 | 47 | 10980 | 36.4 | 271 | 9.56 | 67% |
| GWS HD 7x3.5 | 1 | 10.8 | 5.4 | 58 | 11550 | 38.3 | 326 | 11.50 | 65% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 7x3.5 | 1 | 10.8 | 5.4 | 58 | 11550 | 38.3 | 326 | 11.50 | 65% |
| APC SF 7x4 | 1 | 6.9 | 4.15 | 28 | 7230 | 27.4 | 197 | 6.95 | 64% |
| APC SF 7x4 | 1 | 6.9 | 4.15 | 28 | 7230 | 27.4 | 197 | 6.95 | 64% |
| APC SF 7x4 | 1 | 7.4 | 4.5 | 33 | 7530 | 28.5 | 215 | 7.58 | 62% |
| APC SF 7x4 | 1 | 7.4 | 4.5 | 33 | 7530 | 28.5 | 215 | 7.58 | 62% |
| GWS HD 8x4 | 1 | 6.9 | 4.7 | 32 | 6660 | 25.2 | 231 | 8.15 | 59% |
| GWS HD 8x4 | 1 | 6.9 | 4.7 | 32 | 6660 | 25.2 | 231 | 8.15 | 59% |
| GWS HD 8x4 | 1 | 7.4 | 5.05 | 37 | 6960 | 26.4 | 252 | 8.89 | 57% |
| GWS HD 8x4 | 1 | 7.4 | 5.05 | 37 | 6960 | 26.4 | 252 | 8.89 | 57% |
| GWS RS 8x4.3 | 1 | 6.9 | 5.45 | 37 | 5880 | 23.9 | 240 | 8.47 | 52% |
| GWS RS 8x4.3 | 1 | 6.9 | 5.45 | 37 | 5880 | 23.9 | 240 | 8.47 | 52% |
| GWS RS 8x4.3 | 1 | 7.4 | 5.7 | 42 | 6060 | 24.7 | 248 | 8.75 | 50% |
| GWS RS 8x4.3 | 1 | 7.4 | 5.7 | 42 | 6060 | 24.7 | 248 | 8.75 | 50% |
| GWS HD 9x5 | 1 | 6.9 | 6.2 | 42 | 5010 | 23.7 | 256 | 9.03 | 44% |
| GWS HD 9x5 | 1 | 6.9 | 6.2 | 42 | 5010 | 23.7 | 256 | 9.03 | 44% |
| GWS HD 9x5 | 1 | 7.4 | 6.4 | 47 | 5130 | 24.3 | 262 | 9.24 | 42% |
| GWS HD 9x5 | 1 | 7.4 | 6.4 | 47 | 5130 | 24.3 | 262 | 9.24 | 42% |
