Strong Power - A2208/9
Specifications
- Type: Outrunner
- Weight: 41.00g (1.45oz)
- Diameter: 27.90mm (1.10in)
- Length: 25.40mm (1.00in)
- Shaft Diameter: 3.20mm (0.13in)
- Maximum Amps: 25

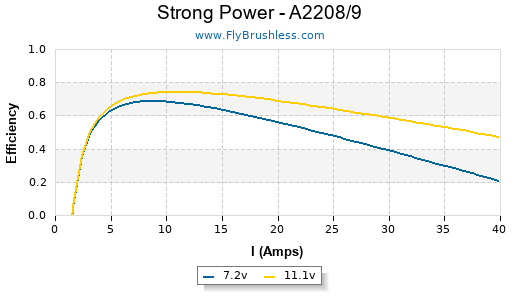

Constants
- kV: 2215
- Rm: 0.142
- Io: 1.5
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 1.25 | 15030 |
| 8.06 | 1.3 | 17200 |
| 10.04 | 1.5 | 21600 |

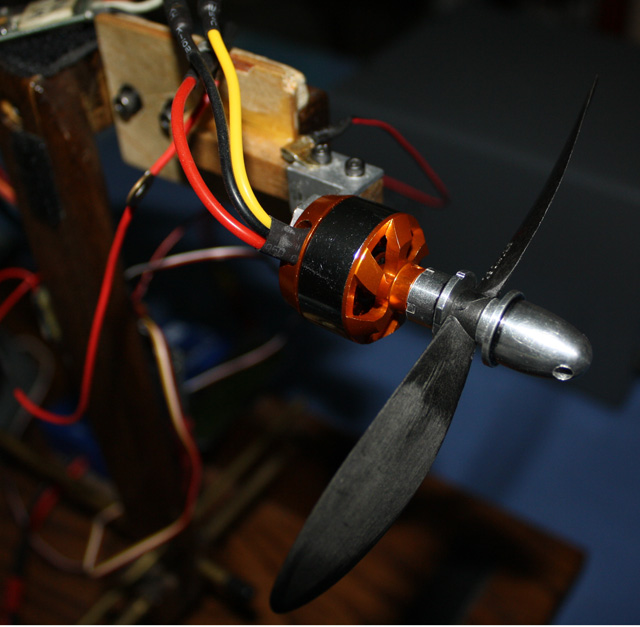

Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 4.75x4.75 | 1 | 6.9 | 6.75 | 46 | 13210 | 59.4 | 154 | 5.43 | 86% |
| APC E 4.75x4.75 | 1 | 7.9 | 8.3 | 65 | 14790 | 66.5 | 198 | 6.98 | 85% |
| APC E 4.75x4.75 | 1 | 8.8 | 9.9 | 87 | 16260 | 73.1 | 242 | 8.54 | 83% |
| APC E 4.75x4.75 | 1 | 9.9 | 11.7 | 115 | 17730 | 79.8 | 291 | 10.26 | 81% |
| APC E 4.75x4.75 | 1 | 10.8 | 13.55 | 146 | 19140 | 86.1 | 336 | 11.85 | 80% |
| EMP 4.75x4.75 | 1 | 6.9 | 6.75 | 46 | 13230 | 59.5 | 190 | 6.70 | 87% |
| EMP 4.75x4.75 | 1 | 7.8 | 8.1 | 63 | 14790 | 66.5 | 237 | 8.36 | 86% |
| EMP 4.75x4.75 | 1 | 8.8 | 9.6 | 84 | 16290 | 73.3 | 293 | 10.34 | 84% |
| EMP 4.75x4.75 | 1 | 9.8 | 11.3 | 110 | 17730 | 79.8 | 348 | 12.28 | 82% |
| EMP 4.75x4.75 | 1 | 10.8 | 13.3 | 143 | 19200 | 86.4 | 410 | 14.46 | 80% |
| Zagi Carbon 5.1x4.9 | 1 | 6.9 | 7.7 | 53 | 12870 | 59.7 | 234 | 8.25 | 84% |
| Zagi Carbon 5.1x4.9 | 1 | 7.8 | 9.4 | 73 | 14340 | 66.5 | 294 | 10.37 | 83% |
| Zagi Carbon 5.1x4.9 | 1 | 8.8 | 11.15 | 98 | 15780 | 73.2 | 356 | 12.56 | 81% |
| Zagi Carbon 5.1x4.9 | 1 | 9.8 | 12.9 | 126 | 17100 | 79.3 | 415 | 14.64 | 79% |
| Zagi Carbon 5.1x4.9 | 1 | 10.7 | 15 | 160 | 18480 | 85.8 | 487 | 17.18 | 78% |
| APC E 6x4 | 1 | 6.8 | 9.35 | 63 | 12390 | 46.9 | 296 | 10.44 | 82% |
| APC E 6x4 | 1 | 7.8 | 11.2 | 87 | 13740 | 52.0 | 371 | 13.09 | 80% |
| APC E 6x4 | 1 | 8.8 | 13.4 | 117 | 15180 | 57.5 | 455 | 16.05 | 78% |
| APC E 6x4 | 1 | 9.8 | 15.7 | 153 | 16290 | 61.7 | 537 | 18.94 | 75% |
| APC E 6x4 | 1 | 10.7 | 18 | 192 | 17400 | 65.9 | 609 | 21.48 | 73% |
| EMP 6x4 | 1 | 6.9 | 8.9 | 61 | 12570 | 47.6 | 317 | 11.18 | 82% |
| EMP 6x4 | 1 | 7.9 | 10.8 | 85 | 13950 | 52.8 | 407 | 14.36 | 80% |
| EMP 6x4 | 1 | 8.8 | 12.8 | 112 | 15270 | 57.8 | 506 | 17.85 | 78% |
| EMP 6x4 | 1 | 9.7 | 14.95 | 145 | 16440 | 62.3 | 598 | 21.09 | 77% |
| EMP 6x4 | 1 | 10.7 | 17.45 | 186 | 17670 | 66.9 | 699 | 24.66 | 75% |
| EMP 6x5 | 1 | 6.9 | 9 | 62 | 12510 | 59.2 | 331 | 11.68 | 82% |
| EMP 6x5 | 1 | 7.8 | 10.95 | 85 | 13890 | 65.8 | 413 | 14.57 | 80% |
| EMP 6x5 | 1 | 8.8 | 13.1 | 115 | 15210 | 72.0 | 497 | 17.53 | 78% |
| EMP 6x5 | 1 | 9.7 | 15.2 | 147 | 16350 | 77.4 | 577 | 20.35 | 76% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| EMP 6x5 | 1 | 10.7 | 17.7 | 189 | 17490 | 82.8 | 670 | 23.63 | 74% |
| APC E 6x5.5 | 1 | 6.8 | 12.1 | 82 | 11490 | 59.8 | 295 | 10.41 | 76% |
| APC E 6x5.5 | 1 | 7.8 | 14.5 | 113 | 12720 | 66.2 | 369 | 13.02 | 74% |
| APC E 6x5.5 | 1 | 8.7 | 16.7 | 145 | 13920 | 72.5 | 443 | 15.63 | 72% |
| APC E 6x5.5 | 1 | 9.7 | 19.2 | 186 | 15000 | 78.1 | 525 | 18.52 | 70% |
| APC E 6x5.5 | 1 | 10.6 | 21.8 | 231 | 15990 | 83.3 | 597 | 21.06 | 68% |
| APC E 6x5.5 | 1 | 11 | 22.7 | 249 | 16320 | 85.0 | 624 | 22.01 | 67% |
| APC Pylon 6.5x6 | 1 | 6.8 | 13.6 | 92 | 11040 | 62.7 | 320 | 11.29 | 73% |
| APC Pylon 6.5x6 | 1 | 7.7 | 16.2 | 124 | 12150 | 69.0 | 395 | 13.93 | 71% |
| APC Pylon 6.5x6 | 1 | 8.7 | 18.6 | 161 | 13140 | 74.7 | 470 | 16.58 | 68% |
| APC Pylon 6.5x6 | 1 | 9.6 | 21.3 | 204 | 14130 | 80.3 | 545 | 19.22 | 66% |
| APC Pylon 6.5x6 | 1 | 10.6 | 24 | 254 | 14940 | 84.9 | 612 | 21.59 | 64% |
Comments
Dr Kiwi on 2010-12-22 13:27:40
This is a 12-arm, 14-magnet motor
