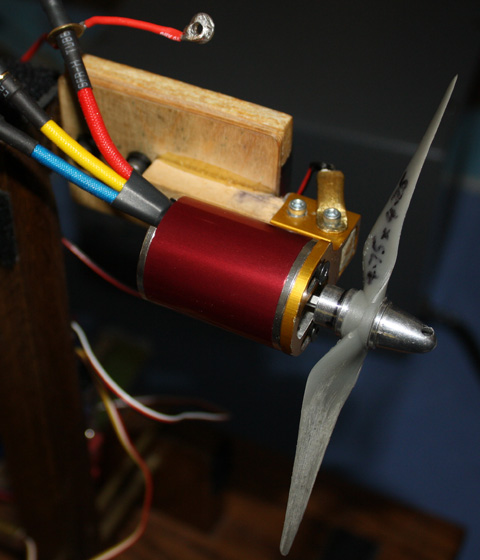

KEDA - KB2835-35
Specifications
- Type: Inrunner
- Weight: 91.00g (3.21oz)
- Diameter: 28.00mm (1.10in)
- Length: 38.10mm (1.50in)
- Shaft Diameter: 3.20mm (0.13in)
- Maximum Amps: 16
Constants
- kV: 2420
- Rm: 0.213
- Io: 1.15
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 1 | 16380 |
| 8 | 1.05 | 18790 |
| 10 | 1.15 | 23510 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| EMP 4.1x4.1 | 1 | 6.9 | 5.4 | 37 | 14130 | 54.9 | 136 | 4.80 | 85% |
| EMP 4.1x4.1 | 1 | 7.8 | 6.65 | 51 | 15900 | 61.7 | 174 | 6.14 | 84% |
| EMP 4.1x4.1 | 1 | 8.8 | 7.85 | 69 | 17430 | 67.7 | 210 | 7.41 | 82% |
| EMP 4.1x4.1 | 1 | 9.8 | 9.2 | 90 | 19080 | 74.1 | 250 | 8.82 | 80% |
| EMP 4.1x4.1 | 1 | 10.7 | 10.55 | 112 | 20550 | 79.8 | 292 | 10.30 | 79% |
| APC E 4.75x4.75 | 1 | 6.9 | 7.45 | 51 | 13410 | 60.3 | 161 | 5.68 | 80% |
| APC E 4.75x4.75 | 1 | 7.8 | 8.8 | 68 | 14670 | 66.0 | 194 | 6.84 | 78% |
| APC E 4.75x4.75 | 1 | 8.8 | 10.3 | 90 | 16020 | 72.1 | 229 | 8.08 | 75% |
| APC E 4.75x4.75 | 1 | 9.8 | 12.1 | 118 | 17400 | 78.3 | 275 | 9.70 | 73% |
| APC E 4.75x4.75 | 1 | 10.7 | 13.8 | 147 | 18540 | 83.4 | 314 | 11.08 | 72% |
| EMP 4.75x4.75 | 1 | 6.8 | 7.15 | 48 | 13230 | 59.5 | 194 | 6.84 | 80% |
| EMP 4.75x4.75 | 1 | 7.8 | 8.6 | 67 | 14730 | 66.3 | 241 | 8.50 | 78% |
| EMP 4.75x4.75 | 1 | 8.8 | 10.2 | 89 | 16230 | 73.0 | 292 | 10.30 | 76% |
| EMP 4.75x4.75 | 1 | 9.8 | 11.9 | 116 | 17580 | 79.1 | 345 | 12.17 | 74% |
| EMP 4.75x4.75 | 1 | 10.7 | 13.4 | 143 | 18780 | 84.5 | 390 | 13.76 | 73% |
| Zagi Carbon 5.1x4.9 | 1 | 6.8 | 8.1 | 55 | 12720 | 59.0 | 237 | 8.36 | 77% |
| Zagi Carbon 5.1x4.9 | 1 | 7.8 | 9.9 | 77 | 14070 | 65.3 | 293 | 10.34 | 75% |
| Zagi Carbon 5.1x4.9 | 1 | 8.7 | 11.55 | 100 | 15300 | 71.0 | 347 | 12.24 | 73% |
| Zagi Carbon 5.1x4.9 | 1 | 9.7 | 13.45 | 130 | 16500 | 76.6 | 405 | 14.29 | 70% |
| Zagi Carbon 5.1x4.9 | 1 | 10.7 | 15.3 | 163 | 17700 | 82.1 | 460 | 16.23 | 68% |
| APC E 6x4 | 1 | 6.9 | 9.6 | 66 | 12090 | 45.8 | 285 | 10.05 | 72% |
| APC E 6x4 | 1 | 7.7 | 11.35 | 87 | 13200 | 50.0 | 344 | 12.13 | 71% |
| APC E 6x4 | 1 | 8.7 | 13.25 | 115 | 14370 | 54.4 | 412 | 14.53 | 68% |
| APC E 6x4 | 1 | 9.7 | 15.15 | 146 | 15330 | 58.1 | 479 | 16.90 | 65% |
| APC E 6x4 | 1 | 10.6 | 17.15 | 181 | 16350 | 61.9 | 542 | 19.12 | 64% |
| EMP 6x4 | 1 | 6.9 | 8.85 | 61 | 12450 | 47.2 | 305 | 10.76 | 75% |
| EMP 6x4 | 1 | 7.8 | 10.65 | 83 | 13680 | 51.8 | 380 | 13.40 | 72% |
| EMP 6x4 | 1 | 8.7 | 12.5 | 108 | 14820 | 56.1 | 452 | 15.94 | 70% |
| EMP 6x4 | 1 | 9.7 | 14.6 | 141 | 15990 | 60.6 | 545 | 19.22 | 68% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| EMP 6x4 | 1 | 10.7 | 16.5 | 176 | 17040 | 64.5 | 622 | 21.94 | 66% |
| APC E 6x5 | 1 | 6.8 | 12 | 81 | 10800 | 51.1 | 263 | 9.28 | 66% |
| APC E 6x5 | 1 | 7.7 | 13.9 | 107 | 11730 | 55.5 | 319 | 11.25 | 63% |
| APC E 6x5 | 1 | 8.7 | 16 | 139 | 12720 | 60.2 | 379 | 13.37 | 60% |
| APC E 6x5 | 1 | 9.6 | 17.8 | 170 | 13590 | 64.3 | 437 | 15.41 | 58% |
| APC E 6x5 | 1 | 10.6 | 19.7 | 208 | 14430 | 68.3 | 495 | 17.46 | 56% |
Comments
Dr Kiwi on 2010-12-22 13:04:21
This is a 2-pole motor.
