EMP - BS2835
Specifications
- Type: Inrunner
- Weight: 98.00g (3.46oz)
- Diameter: 27.95mm (1.10in)
- Length: 33.90mm (1.33in)
- Shaft Diameter: 3.20mm (0.13in)
- Maximum Amps: 20

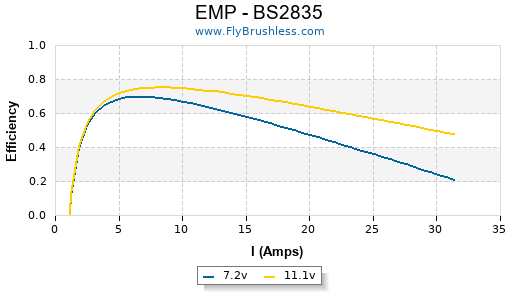

Constants
- kV: 2400
- Rm: 0.18
- Io: 1.1
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 1.1 | 16240 |
| 8 | 1.1 | 18580 |
| 10 | 1.1 | 23380 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| EMP 4.1x4.1 | 1 | 6.9 | 5.45 | 37 | 14340 | 55.7 | 137 | 4.83 | 87% |
| EMP 4.1x4.1 | 1 | 7.8 | 6.7 | 52 | 16110 | 62.5 | 174 | 6.14 | 86% |
| EMP 4.1x4.1 | 1 | 8.8 | 7.8 | 68 | 17850 | 69.3 | 214 | 7.55 | 85% |
| EMP 4.1x4.1 | 1 | 9.8 | 9.1 | 89 | 19560 | 75.9 | 256 | 9.03 | 83% |
| EMP 4.1x4.1 | 1 | 10.7 | 10.6 | 113 | 21120 | 82.0 | 301 | 10.62 | 82% |
| APC E 4.75x4.75 | 1 | 6.8 | 7.2 | 48 | 13560 | 61.0 | 159 | 5.61 | 83% |
| APC E 4.75x4.75 | 1 | 7.8 | 8.8 | 68 | 15090 | 67.9 | 199 | 7.02 | 81% |
| APC E 4.75x4.75 | 1 | 8.8 | 10.55 | 92 | 16590 | 74.6 | 239 | 8.43 | 79% |
| APC E 4.75x4.75 | 1 | 9.7 | 12.45 | 120 | 18000 | 81.0 | 286 | 10.09 | 77% |
| APC E 4.75x4.75 | 1 | 10.7 | 14.2 | 151 | 19260 | 86.6 | 328 | 11.57 | 75% |
| EMP 4.75x4.75 | 1 | 6.8 | 7 | 47 | 13650 | 61.4 | 200 | 7.05 | 84% |
| EMP 4.75x4.75 | 1 | 7.8 | 8.6 | 67 | 15270 | 68.7 | 250 | 8.82 | 82% |
| EMP 4.75x4.75 | 1 | 8.8 | 10.25 | 90 | 16710 | 75.2 | 298 | 10.51 | 79% |
| EMP 4.75x4.75 | 1 | 9.7 | 11.95 | 115 | 18150 | 81.6 | 352 | 12.42 | 78% |
| EMP 4.75x4.75 | 1 | 10.7 | 13.9 | 148 | 19530 | 87.8 | 409 | 14.43 | 76% |
| Zagi Carbon 5.1x4.9 | 1 | 6.8 | 8.85 | 60 | 12780 | 59.3 | 231 | 8.15 | 78% |
| Zagi Carbon 5.1x4.9 | 1 | 7.8 | 10.9 | 85 | 14220 | 66.0 | 288 | 10.16 | 76% |
| Zagi Carbon 5.1x4.9 | 1 | 8.7 | 12.8 | 111 | 15390 | 71.4 | 343 | 12.10 | 74% |
| Zagi Carbon 5.1x4.9 | 1 | 9.7 | 15 | 145 | 16650 | 77.3 | 401 | 14.14 | 72% |
| Zagi Carbon 5.1x4.9 | 1 | 10.6 | 17.05 | 180 | 17730 | 82.3 | 459 | 16.19 | 70% |
| EMP 6x4 | 1 | 6.8 | 9.35 | 63 | 12660 | 48.0 | 328 | 11.57 | 78% |
| EMP 6x4 | 1 | 7.7 | 11.1 | 85 | 14070 | 53.3 | 403 | 14.22 | 76% |
| EMP 6x4 | 1 | 8.7 | 13.1 | 113 | 15390 | 58.3 | 495 | 17.46 | 74% |
| EMP 6x4 | 1 | 9.7 | 15.15 | 146 | 16620 | 63.0 | 585 | 20.64 | 71% |
| EMP 6x4 | 1 | 10.6 | 17.3 | 183 | 17640 | 66.8 | 675 | 23.81 | 69% |
| EMP 6x5 | 1 | 6.8 | 10.6 | 72 | 12000 | 56.8 | 353 | 12.45 | 74% |
| EMP 6x5 | 1 | 7.7 | 12.8 | 98 | 13230 | 62.6 | 431 | 15.20 | 72% |
| EMP 6x5 | 1 | 8.7 | 15.35 | 133 | 14220 | 67.3 | 503 | 17.74 | 68% |
| EMP 6x5 | 1 | 9.6 | 17.4 | 167 | 15300 | 72.4 | 590 | 20.81 | 66% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| EMP 6x5 | 1 | 10.6 | 19.5 | 206 | 16230 | 76.8 | 655 | 23.10 | 64% |
| APC E 6x5.5 | 1 | 6.8 | 12.55 | 85 | 11190 | 58.3 | 278 | 9.81 | 69% |
| APC E 6x5.5 | 1 | 7.7 | 14.85 | 114 | 12270 | 63.9 | 339 | 11.96 | 66% |
| APC E 6x5.5 | 1 | 8.6 | 17 | 146 | 13350 | 69.5 | 407 | 14.36 | 65% |
| APC E 6x5.5 | 1 | 9.6 | 19.1 | 183 | 14280 | 74.4 | 468 | 16.51 | 62% |
| APC E 6x5.5 | 1 | 10.6 | 21.2 | 224 | 15090 | 78.6 | 526 | 18.55 | 59% |
| APC E 7x5 | 1 | 10.7 | 23.5 | 251 | 11910 | 56.4 | 653 | 23.03 | 46% |
| APC E 7x5 | 1 | 10.8 | 27.4 | 295 | 12600 | 59.7 | 762 | 26.88 | 49% |
Comments
Dr Kiwi on 2010-12-22 10:46:55
This is a 2-pole motor.
