Black Mantis - BM2435/9

Specifications

  • Type: Inrunner
  • Weight: 64.00g (2.26oz)
  • Diameter: 24.00mm (0.94in)
  • Length: 35.00mm (1.38in)
  • Shaft Diameter: 3.00mm (0.12in)
  • Maximum Amps: 13

Constants

  • kV: 3835
  • Rm: 0.11
  • Io: 1.2



Io Test Data

Dr Kiwi test results
Volts Amps RPM
7 0.95 26400
8 1 30260
10 1.2 37800

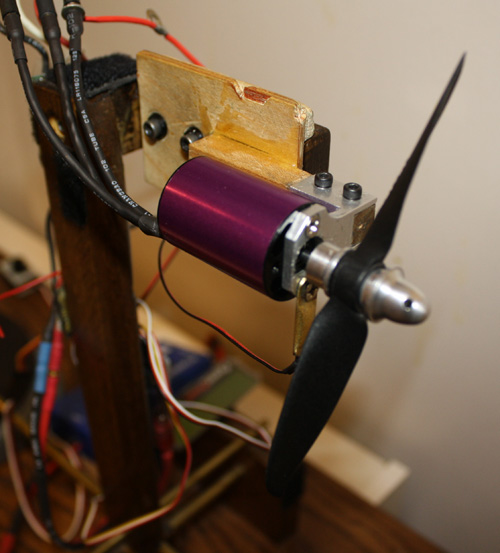

Test Data

Dr Kiwi test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
EMP 4.1x4.1 1 7 15.05 105 20070 77.9 271 9.56 75%
EMP 4.1x4.1 1 7.4 16.15 119 20850 81.0 292 10.30 73%
GWS HD 8x4 4 6.9 3.4 23 6270 23.8 201 7.09 95%
GWS HD 8x4 4 7.9 4.2 33 7140 27.1 265 9.35 94%
GWS HD 8x4 4 8.9 5 44 7980 30.2 335 11.82 94%
GWS HD 8x4 4 9.9 6.05 59 8820 33.4 410 14.46 93%
GWS HD 8x4 4 10.8 7.15 77 9600 36.4 491 17.32 93%
GWS HD 9x5 4 6.9 5.7 39 6030 28.6 345 12.17 91%
GWS HD 9x5 4 7.9 7.1 56 6780 32.1 442 15.59 90%
GWS HD 9x5 4 8.8 8.6 75 7500 35.5 548 19.33 89%
GWS HD 9x5 4 9.8 10.3 100 8220 38.9 663 23.39 87%
GWS HD 9x5 4 10.7 12.1 129 8880 42.0 773 27.27 87%
GWS HD 10x6 4 6.9 7.7 53 5760 32.7 441 15.56 87%
GWS HD 10x6 4 7.8 9.5 74 6450 36.6 559 19.72 86%
GWS HD 10x6 4 8.7 11.45 99 7110 40.4 685 24.16 85%
GWS HD 10x6 4 9.7 13.6 131 7800 44.3 815 28.75 84%
GWS HD 10x6 4 10.7 15.5 165 8400 47.7 937 33.05 82%
GWS HD 11x7 4 7 11.8 82 5400 35.8 635 22.40 80%
GWS HD 11x7 4 7.4 12.7 93 5640 37.4 690 24.34 79%
GWS HD 11x7 4 7.7 13.9 107 5880 39.0 756 26.67 80%
GWS HD 11x7 4 8.7 16.4 142 6390 42.4 888 31.32 77%
GWS HD 11x7 4 9.6 19.4 186 6930 45.9 1066 37.60 75%
GWS HD 11x7 4 10.6 22 233 7350 48.7 1210 42.68 72%

Comments

Dr Kiwi on 2010-12-22 10:39:29
This is a 2-pole motor
