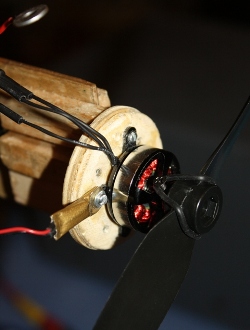

OverskyRC - AP 15
Specifications
- Type: Outrunner
- Weight: 16.00g (0.56oz)
- Diameter: 24.12mm (0.95in)
- Length: 17.50mm (0.69in)
- Shaft Diameter: 3.00mm (0.12in)
- Maximum Amps: 7
Constants
- kV: 1510
- Rm: 0.8
- Io: 0.35
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.3 | 10200 |
| 8 | 0.3 | 11620 |
| 10 | 0.35 | 14450 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 6x3 | 1 | 7 | 1.9 | 13 | 8520 | 24.2 | 115 | 4.06 | 81% |
| GWS HD 6x3 | 1 | 7.4 | 2 | 14 | 8820 | 25.1 | 127 | 4.48 | 79% |
| GWS HD 6x3 | 1 | 7.9 | 2.25 | 17 | 9390 | 26.7 | 145 | 5.11 | 79% |
| GWS HD 6x3 | 1 | 8.9 | 2.65 | 23 | 10320 | 29.3 | 177 | 6.24 | 77% |
| GWS HD 6x3 | 1 | 9.9 | 3.05 | 30 | 11190 | 31.8 | 209 | 7.37 | 75% |
| GWS HD 6x3 | 1 | 10.9 | 3.5 | 38 | 12030 | 34.2 | 244 | 8.61 | 73% |
| GWS HD 6x3 | 1 | 14 | 4.9 | 68 | 14310 | 40.7 | 348 | 12.28 | 68% |
| GWS RS 6x5 | 1 | 6.9 | 3.2 | 22 | 6990 | 33.1 | 136 | 4.80 | 67% |
| GWS RS 6x5 | 1 | 7.4 | 3.5 | 25 | 7290 | 34.5 | 150 | 5.29 | 65% |
| GWS RS 6x5 | 1 | 7.9 | 3.85 | 30 | 7590 | 35.9 | 164 | 5.78 | 64% |
| GWS RS 6x5 | 1 | 8.9 | 4.5 | 40 | 8190 | 38.8 | 190 | 6.70 | 61% |
| GWS RS 6x5 | 1 | 9.9 | 5.2 | 51 | 8700 | 41.2 | 218 | 7.69 | 58% |
| GWS RS 6x5 | 1 | 10.8 | 5.8 | 62 | 9090 | 43.0 | 243 | 8.57 | 56% |
| GWS HD 7x3.5 | 1 | 6.9 | 2.35 | 16 | 7860 | 26.1 | 138 | 4.87 | 75% |
| GWS HD 7x3.5 | 1 | 7.4 | 2.6 | 19 | 8250 | 27.3 | 155 | 5.47 | 74% |
| GWS HD 7x3.5 | 1 | 7.9 | 2.8 | 22 | 8730 | 28.9 | 174 | 6.14 | 73% |
| GWS HD 7x3.5 | 1 | 8.8 | 3.3 | 29 | 9450 | 31.3 | 208 | 7.34 | 71% |
| GWS HD 7x3.5 | 1 | 9.9 | 3.8 | 37 | 10290 | 34.1 | 241 | 8.50 | 69% |
| GWS HD 7x3.5 | 1 | 10.9 | 4.3 | 46 | 10890 | 36.1 | 269 | 9.49 | 66% |
| APC SF 7x4 | 1 | 6.9 | 3.5 | 24 | 6750 | 25.6 | 166 | 5.86 | 65% |
| APC SF 7x4 | 1 | 7.4 | 3.8 | 28 | 7020 | 26.6 | 181 | 6.38 | 63% |
| APC SF 7x4 | 1 | 7.9 | 4.1 | 32 | 7320 | 27.7 | 198 | 6.98 | 61% |
| APC SF 7x4 | 1 | 8.9 | 4.85 | 43 | 7770 | 29.4 | 227 | 8.01 | 58% |
| APC SF 7x4 | 1 | 9.9 | 5.7 | 56 | 8100 | 30.7 | 247 | 8.71 | 54% |
| APC SF 7x4 | 1 | 10.8 | 6.3 | 68 | 8310 | 31.5 | 264 | 9.31 | 51% |
| GWS HD 8x4 | 1 | 6.9 | 3.9 | 26 | 6330 | 24.0 | 213 | 7.51 | 61% |
| GWS HD 8x4 | 1 | 7.4 | 4.2 | 31 | 6570 | 24.9 | 233 | 8.22 | 59% |
| GWS HD 8x4 | 1 | 7.9 | 4.5 | 35 | 6810 | 25.8 | 250 | 8.82 | 57% |
| GWS HD 8x4 | 1 | 8.8 | 5.2 | 45 | 7230 | 27.4 | 287 | 10.12 | 54% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 8x4 | 1 | 9.8 | 5.9 | 57 | 7560 | 28.6 | 316 | 11.15 | 51% |
| GWS HD 8x4 | 1 | 10.8 | 6.5 | 70 | 7890 | 29.9 | 342 | 12.06 | 48% |
| GWS RS 8x4.3 | 1 | 6.9 | 4.75 | 32 | 5580 | 22.7 | 218 | 7.69 | 54% |
| GWS RS 8x4.3 | 1 | 7.4 | 5.05 | 37 | 5760 | 23.5 | 229 | 8.08 | 52% |
| GWS RS 8x4.3 | 1 | 7.9 | 5.4 | 42 | 6000 | 24.4 | 251 | 8.85 | 50% |
| GWS RS 8x4.3 | 1 | 8.8 | 6.05 | 53 | 6240 | 25.4 | 275 | 9.70 | 47% |
| GWS RS 8x4.3 | 1 | 9.8 | 6.7 | 65 | 6540 | 26.6 | 303 | 10.69 | 44% |
| GWS RS 8x4.3 | 1 | 10.8 | 7.3 | 78 | 6750 | 27.5 | 320 | 11.29 | 41% |
| GWS HD 9x5 | 1 | 7 | 5.2 | 36 | 4980 | 23.6 | 240 | 8.47 | 47% |
| GWS HD 9x5 | 1 | 7.4 | 5.5 | 40 | 5070 | 24.0 | 250 | 8.82 | 45% |
Comments
Dr Kiwi on 2012-12-18 21:35:30

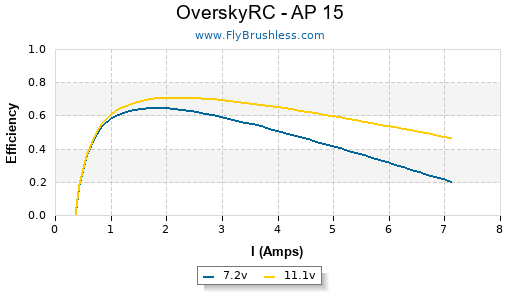

DriveCalc computed max. efficiency 69% @ 2.5A, efficiency at nominal max.(7A) = 46%
