Leopard - LC3536-8T
Specifications
- Type: Outrunner
- Weight: 102.00g (3.60oz)
- Diameter: 35.05mm (1.38in)
- Length: 37.20mm (1.46in)
- Shaft Diameter: 3.98mm (0.16in)
- Maximum Amps: 30

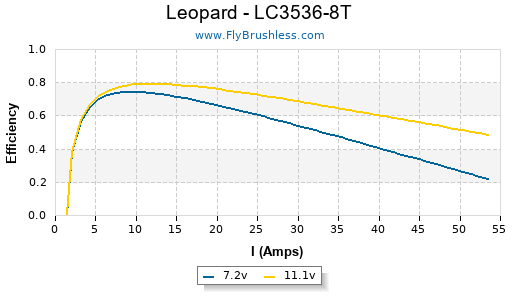

Constants
- kV: 1060
- Rm: 0.105
- Io: 1.3
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 1.05 | 7300 |
| 8 | 1.15 | 8300 |
| 10 | 1.3 | 10420 |
| 10 | 1.3 | 10420 |
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 8x4 | 1 | 6.9 | 4.15 | 28 | 6930 | 26.2 | 249 | 8.78 | 95% |
| GWS HD 8x4 | 1 | 7.9 | 5.05 | 39 | 7770 | 29.4 | 320 | 11.29 | 93% |
| GWS HD 8x4 | 1 | 8.9 | 6.1 | 54 | 8700 | 33.0 | 398 | 14.04 | 92% |
| GWS HD 8x4 | 1 | 9.9 | 7.3 | 72 | 9570 | 36.2 | 492 | 17.35 | 91% |
| GWS HD 8x4 | 1 | 10.8 | 8.5 | 91 | 10410 | 39.4 | 590 | 20.81 | 91% |
| GWS HD 9x5 | 1 | 6.9 | 7.05 | 48 | 6540 | 31.0 | 419 | 14.78 | 89% |
| GWS HD 9x5 | 1 | 7.8 | 8.7 | 67 | 7320 | 34.7 | 532 | 18.77 | 89% |
| GWS HD 9x5 | 1 | 8.8 | 10.5 | 92 | 8100 | 38.4 | 665 | 23.46 | 87% |
| GWS HD 9x5 | 1 | 9.7 | 12.35 | 119 | 8880 | 42.0 | 800 | 28.22 | 86% |
| GWS HD 9x5 | 1 | 10.7 | 14.45 | 154 | 9600 | 45.5 | 935 | 32.98 | 85% |
| GWS HD 10x6 | 1 | 6.9 | 9.4 | 64 | 6240 | 35.5 | 533 | 18.80 | 85% |
| GWS HD 10x6 | 1 | 7.8 | 11.6 | 90 | 6990 | 39.7 | 675 | 23.81 | 85% |
| GWS HD 10x6 | 1 | 8.8 | 13.9 | 122 | 7710 | 43.8 | 819 | 28.89 | 83% |
| GWS HD 10x6 | 1 | 9.7 | 16.2 | 157 | 8370 | 47.6 | 950 | 33.51 | 81% |
| GWS HD 10x6 | 1 | 10.7 | 18.7 | 200 | 9030 | 51.3 | 1129 | 39.82 | 80% |
| GWS HD 11x7 | 1 | 6.7 | 13.9 | 93 | 5760 | 38.2 | 735 | 25.93 | 81% |
| GWS HD 11x7 | 1 | 7.6 | 16.8 | 127 | 6360 | 42.2 | 899 | 31.71 | 79% |
| GWS HD 11x7 | 1 | 8.6 | 20 | 172 | 6960 | 46.1 | 1070 | 37.74 | 76% |
| GWS HD 11x7 | 1 | 9.6 | 22.7 | 217 | 7650 | 50.7 | 1246 | 43.95 | 75% |
| GWS HD 11x7 | 1 | 11.1 | 28.8 | 319 | 8250 | 54.7 | 1550 | 54.67 | 70% |
