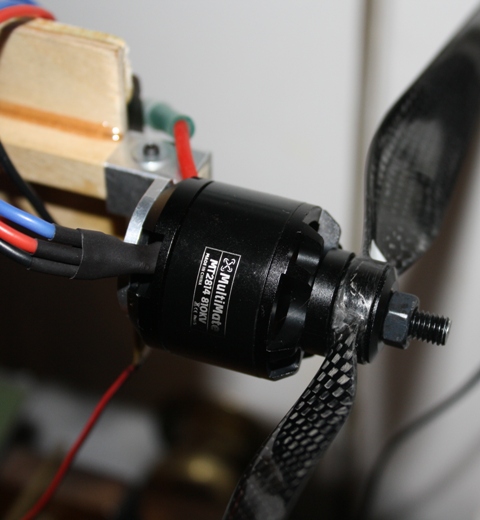

iFlight iPower - Multimate MT2814-810
Specifications
- Type: Outrunner
- Weight: 119.00g (4.20oz)
- Diameter: 35.00mm (1.38in)
- Length: 33.50mm (1.32in)
- Shaft Diameter: 4.00mm (0.16in)
- Maximum Amps: 24
Constants
- kV: 770
- Rm: 0.265
- Io: 0.85
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.75 | 5260 |
| 8 | 0.8 | 6090 |
| 10 | 0.85 | 7600 |

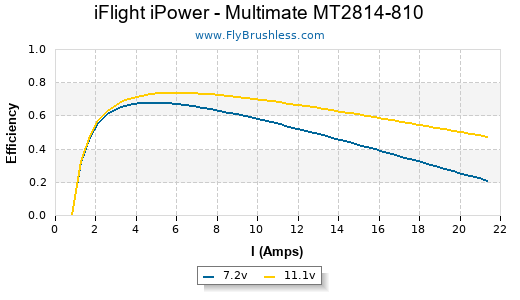

Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS HD 9x5 | 1 | 10.9 | 6.7 | 73 | 7530 | 35.7 | 551 | 19.44 | 90% |
| iFlight CF 11x4.7 | 1 | 6.9 | 6.55 | 45 | 4620 | 20.6 | 456 | 16.08 | 87% |
| iFlight CF 11x4.7 | 1 | 7.8 | 7.9 | 61 | 5100 | 22.7 | 562 | 19.82 | 85% |
| iFlight CF 11x4.7 | 1 | 8.7 | 9.4 | 81 | 5580 | 24.8 | 676 | 23.85 | 83% |
| iFlight CF 11x4.7 | 1 | 9.7 | 11.2 | 108 | 6090 | 27.1 | 822 | 29.00 | 82% |
| iFlight CF 11x4.7 | 1 | 10.7 | 12.9 | 138 | 6540 | 29.1 | 950 | 33.51 | 79% |
| iFlight CF 11x4.7 | 1 | 14.2 | 19.9 | 282 | 8100 | 36.1 | 1495 | 52.73 | 74% |
| iFlight CF 12x4.5 | 1 | 6.8 | 6.8 | 46 | 4500 | 19.2 | 454 | 16.01 | 86% |
| iFlight CF 12x4.5 | 1 | 7.8 | 8.3 | 64 | 5070 | 21.6 | 574 | 20.25 | 84% |
| iFlight CF 12x4.5 | 1 | 8.8 | 9.85 | 86 | 5550 | 23.7 | 696 | 24.55 | 82% |
| iFlight CF 12x4.5 | 1 | 9.8 | 11.6 | 113 | 6060 | 25.8 | 830 | 29.28 | 80% |
| iFlight CF 12x4.5 | 1 | 10.7 | 13.2 | 141 | 6510 | 27.7 | 964 | 34.00 | 79% |
| iFlight CF 12x4.5 | 1 | 14.2 | 20.1 | 285 | 8070 | 34.4 | 1502 | 52.98 | 74% |
| GWS HD 12x6 | 1 | 6.9 | 7.35 | 50 | 4530 | 25.7 | 506 | 17.85 | 85% |
| GWS HD 12x6 | 1 | 7.8 | 8.85 | 69 | 5010 | 28.5 | 615 | 21.69 | 83% |
| GWS HD 12x6 | 1 | 8.7 | 10.45 | 90 | 5490 | 31.2 | 756 | 26.67 | 82% |
| GWS HD 12x6 | 1 | 9.7 | 12.35 | 119 | 6000 | 34.1 | 890 | 31.39 | 80% |
| GWS HD 12x6 | 1 | 10.7 | 14.2 | 151 | 6420 | 36.5 | 1042 | 36.76 | 78% |
| GWS HD 12x6 | 1 | 14.2 | 21.5 | 305 | 7860 | 44.7 | 1589 | 56.05 | 72% |
| iFlight CF 13x6.5 | 1 | 6.8 | 11.3 | 76 | 3900 | 24.0 | 621 | 21.91 | 74% |
| iFlight CF 13x6.5 | 1 | 7.7 | 13.4 | 103 | 4290 | 26.4 | 806 | 28.43 | 72% |
| iFlight CF 13x6.5 | 1 | 8.6 | 15.7 | 135 | 4680 | 28.8 | 935 | 32.98 | 71% |
| iFlight CF 13x6.5 | 1 | 9.6 | 18 | 172 | 5040 | 31.0 | 1130 | 39.86 | 68% |
| iFlight CF 13x6.5 | 1 | 10.6 | 20.3 | 215 | 5340 | 32.9 | 1284 | 45.29 | 65% |
| iFlight CF 13x6.5 | 1 | 14.2 | 30 | 426 | 6390 | 39.3 | 1840 | 64.90 | 58% |
