GPS - HXT C2222-31
Specifications
- Type: Outrunner
- Weight: 19.00g (0.67oz)
- Maximum Amps: 10
Constants
- kV: 3150
- Rm: 0.52
- Io: 0.9
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.75 | 20820 |
| 8 | 0.8 | 23790 |
| 10 | 0.9 | 29520 |

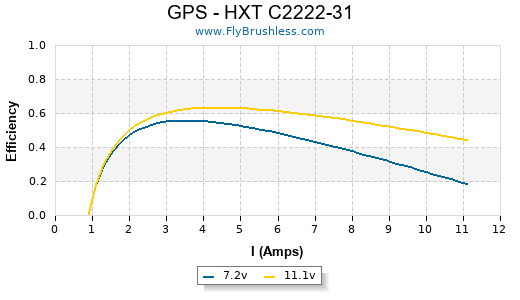

Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS DD 4x2.5 | 1 | 7 | 3.75 | 26 | 16530 | 39.1 | 124 | 4.37 | 75% |
| GWS DD 4x2.5 | 1 | 7.4 | 4 | 29 | 17280 | 40.9 | 134 | 4.73 | 74% |
| GWS DD 4x2.5 | 1 | 7.9 | 4.45 | 35 | 18030 | 42.7 | 145 | 5.11 | 72% |
| GWS DD 4x2.5 | 1 | 8.9 | 5 | 44 | 20100 | 47.6 | 178 | 6.28 | 72% |
| GWS DD 4x2.5 | 1 | 9.9 | 5.7 | 56 | 21660 | 51.3 | 209 | 7.37 | 69% |
| GWS DD 4x2.5 | 1 | 10.9 | 6.35 | 69 | 23130 | 54.8 | 241 | 8.50 | 67% |
| GWS HD 5x3 | 1 | 6.9 | 7.4 | 51 | 10920 | 31.0 | 149 | 5.26 | 50% |
