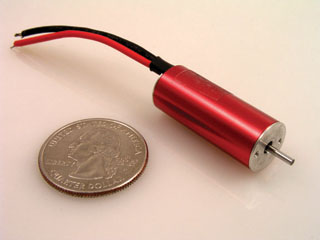

AON - T1215-5000
Specifications
- Type: Inrunner
- Weight: 16.00g (0.56oz)
- Diameter: 12.00mm (0.47in)
- Length: 30.00mm (1.18in)
- Shaft Diameter: 1.50mm (0.06in)
- Maximum Amps: 4.7
Constants
- kV: 5000
- Rm: 0
- Io: 0
Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS EDF40 x6 1.6x3 | 1 | 6.8 | 2.15 | 14 | 27020 | 46.1 | 47 | 1.66 | 79% |
| GWS EDF40 x6 1.6x3 | 1 | 7.7 | 2.6 | 20 | 30010 | 51.1 | 58 | 2.05 | 78% |
| GWS EDF40 x6 1.6x3 | 1 | 8.7 | 3.05 | 26 | 32710 | 55.8 | 64 | 2.26 | 75% |
| GWS EDF40 x6 1.6x3 | 1 | 9.7 | 3.5 | 33 | 35980 | 61.3 | 76 | 2.68 | 74% |
| GWS EDF40 x6 1.6x3 | 1 | 10.6 | 4.1 | 43 | 38200 | 65.1 | 91 | 3.21 | 72% |
| GWS EDF50B x5 2x3 | 1 | 6.9 | 2.7 | 18 | 25464 | 43.4 | 52 | 1.83 | 74% |
| GWS EDF50B x5 2x3 | 1 | 7.9 | 3.2 | 25 | 27876 | 47.5 | 64 | 2.26 | 71% |
| GWS EDF50B x5 2x3 | 1 | 8.9 | 3.85 | 34 | 30300 | 51.6 | 78 | 2.75 | 68% |
| GWS EDF50B x5 2x3 | 1 | 9.9 | 4.4 | 43 | 31560 | 53.8 | 84 | 2.96 | 64% |
| GWS EDF50A x3 2x3 | 1 | 6.9 | 2.3 | 15 | 26620 | 45.4 | 48 | 1.69 | 77% |
| GWS EDF50A x3 2x3 | 1 | 7.9 | 2.8 | 22 | 29800 | 50.8 | 60 | 2.12 | 75% |
| GWS EDF50A x3 2x3 | 1 | 8.9 | 3.3 | 29 | 32620 | 55.6 | 73 | 2.57 | 73% |
| GWS EDF50A x3 2x3 | 1 | 9.9 | 3.8 | 37 | 36120 | 61.6 | 85 | 3.00 | 73% |
| GWS EDF50A x3 2x3 | 1 | 10.8 | 4.3 | 46 | 39000 | 66.5 | 100 | 3.53 | 72% |
| GWS HD 7x3.5 | 5.86 | 6.9 | 1.1 | 7 | 5370 | 17.8 | 57 | 2.01 | 91% |
| GWS HD 7x3.5 | 5.86 | 7.9 | 1.3 | 10 | 6150 | 20.4 | 76 | 2.68 | 91% |
| GWS HD 7x3.5 | 5.86 | 8.9 | 1.5 | 13 | 6840 | 22.7 | 95 | 3.35 | 90% |
| GWS HD 7x3.5 | 5.86 | 9.9 | 1.75 | 17 | 7620 | 25.3 | 125 | 4.41 | 90% |
| GWS HD 7x3.5 | 5.86 | 10.9 | 2 | 21 | 8280 | 27.4 | 151 | 5.33 | 89% |
| GWS RS 7x6 | 5.86 | 6.8 | 2.25 | 15 | 4650 | 26.4 | 116 | 4.09 | 80% |
| GWS RS 7x6 | 5.86 | 7.8 | 2.7 | 21 | 5130 | 29.1 | 147 | 5.19 | 77% |
| GWS RS 7x6 | 5.86 | 8.8 | 3.15 | 27 | 5610 | 31.9 | 173 | 6.10 | 75% |
| GWS RS 7x6 | 5.86 | 9.8 | 3.75 | 36 | 6060 | 34.4 | 208 | 7.34 | 72% |
| GWS RS 7x6 | 5.86 | 10.7 | 4.1 | 43 | 6490 | 36.9 | 234 | 8.25 | 71% |
| GWS HD 8x4 | 5.86 | 6.9 | 1.8 | 12 | 4950 | 18.8 | 122 | 4.30 | 84% |
| GWS HD 8x4 | 8.6 | 7 | 1.3 | 9 | 4080 | 15.4 | 79 | 2.79 | 100% |
| GWS HD 8x4 | 5.86 | 7.9 | 2.25 | 17 | 5520 | 20.9 | 152 | 5.36 | 82% |
| GWS HD 8x4 | 8.6 | 8 | 1.55 | 12 | 4590 | 17.4 | 104 | 3.67 | 99% |
| GWS HD 8x4 | 5.86 | 8.8 | 2.6 | 22 | 6060 | 22.9 | 181 | 6.38 | 81% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| GWS HD 8x4 | 8.6 | 9 | 1.8 | 16 | 5130 | 19.4 | 131 | 4.62 | 98% |
| GWS HD 8x4 | 5.86 | 9.8 | 3.1 | 30 | 6600 | 25.0 | 222 | 7.83 | 79% |
| GWS HD 8x4 | 8.6 | 9.9 | 2.05 | 20 | 5640 | 21.4 | 157 | 5.54 | 98% |
| GWS HD 8x4 | 5.86 | 10.7 | 3.5 | 37 | 7080 | 26.8 | 263 | 9.28 | 78% |
| GWS HD 8x4 | 8.6 | 10.9 | 2.35 | 25 | 6210 | 23.5 | 197 | 6.95 | 98% |
| GWS RS 8x4.3 | 5.86 | 6.8 | 2.3 | 15 | 4590 | 18.7 | 145 | 5.11 | 79% |
| GWS RS 8x4.3 | 8.6 | 7 | 1.55 | 10 | 3960 | 16.1 | 102 | 3.60 | 97% |
| GWS RS 8x4.3 | 5.86 | 7.8 | 2.7 | 21 | 5160 | 21.0 | 166 | 5.86 | 78% |
| GWS RS 8x4.3 | 8.6 | 8 | 1.85 | 14 | 4470 | 18.2 | 133 | 4.69 | 96% |
| GWS RS 8x4.3 | 5.86 | 8.8 | 3.2 | 28 | 5610 | 22.8 | 212 | 7.48 | 75% |
| GWS RS 8x4.3 | 8.6 | 9 | 2.2 | 19 | 4950 | 20.2 | 163 | 5.75 | 95% |
| GWS RS 8x4.3 | 5.86 | 9.7 | 3.7 | 35 | 6060 | 24.7 | 249 | 8.78 | 73% |
| GWS RS 8x4.3 | 8.6 | 10 | 2.55 | 25 | 5460 | 22.2 | 195 | 6.88 | 94% |
| GWS RS 8x4.3 | 5.86 | 10.7 | 4.2 | 44 | 6480 | 26.4 | 282 | 9.95 | 71% |
| GWS RS 8x4.3 | 8.6 | 10.9 | 2.9 | 31 | 5910 | 24.1 | 229 | 8.08 | 93% |
| GWS HD 9x5 | 5.86 | 6.9 | 2.75 | 18 | 4290 | 20.3 | 173 | 6.10 | 73% |
| GWS HD 9x5 | 8.6 | 7 | 1.85 | 12 | 3810 | 18.0 | 131 | 4.62 | 94% |
| GWS HD 9x5 | 5.86 | 7.8 | 3.25 | 25 | 4770 | 22.6 | 205 | 7.23 | 72% |
| GWS HD 9x5 | 8.6 | 8 | 2.25 | 18 | 4290 | 20.3 | 168 | 5.93 | 92% |
| GWS HD 9x5 | 5.86 | 8.7 | 3.8 | 33 | 5130 | 24.3 | 241 | 8.50 | 69% |
| GWS HD 9x5 | 8.6 | 9 | 2.65 | 23 | 4710 | 22.3 | 206 | 7.27 | 90% |
| GWS HD 9x5 | 5.86 | 9.7 | 4.2 | 40 | 5430 | 25.7 | 288 | 10.16 | 66% |
| GWS HD 9x5 | 8.6 | 10 | 3.1 | 31 | 5160 | 24.4 | 247 | 8.71 | 89% |
| GWS HD 10x6 | 8.6 | 7 | 2.35 | 16 | 3540 | 20.1 | 165 | 5.82 | 87% |
| GWS HD 10x6 | 8.6 | 7.4 | 2.6 | 19 | 3720 | 21.1 | 186 | 6.56 | 86% |
| GWS HD 10x6 | 8.6 | 8 | 2.85 | 22 | 3930 | 22.3 | 206 | 7.27 | 84% |
| GWS HD 10x6 | 8.6 | 9 | 3.3 | 29 | 4290 | 24.4 | 247 | 8.71 | 82% |
| GWS HD 10x6 | 8.6 | 10 | 3.85 | 38 | 4590 | 26.1 | 288 | 10.16 | 79% |
| GWS HD 10x6 | 8.6 | 10.9 | 4.4 | 47 | 4920 | 27.9 | 321 | 11.32 | 78% |
