Grayson - Super Cruise MD
Specifications
- Type: Outrunner
- Weight: 55.00g (1.94oz)
- Maximum Amps: 40
Constants
- kV: 2300
- Rm: 0.16
- Io: 1.4
Io Test Data
Dr Kiwi test results
| Volts | Amps | RPM |
|---|---|---|
| 10 | 1.4 | 22500 |

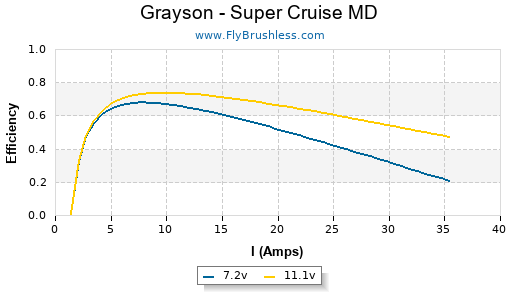

Test Data
Dr Kiwi test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| APC E 5x5 | 1 | 6.9 | 8.25 | 56 | 13050 | 61.8 | 173 | 6.10 | 82% |
| APC E 5x5 | 1 | 7.9 | 9.9 | 78 | 14490 | 68.6 | 215 | 7.58 | 80% |
| APC E 5x5 | 1 | 8.8 | 11.9 | 104 | 15870 | 75.1 | 260 | 9.17 | 78% |
| APC E 5x5 | 1 | 9.8 | 14.4 | 141 | 17340 | 82.1 | 315 | 11.11 | 77% |
| APC E 5x5 | 1 | 10.8 | 16.5 | 178 | 18600 | 88.1 | 366 | 12.91 | 75% |
| Zagi Carbon 5.1x4.9 | 1 | 6.9 | 8.1 | 55 | 13140 | 61.0 | 246 | 8.68 | 83% |
| Zagi Carbon 5.1x4.9 | 1 | 7.8 | 9.75 | 76 | 14580 | 67.7 | 303 | 10.69 | 81% |
| Zagi Carbon 5.1x4.9 | 1 | 8.8 | 11.65 | 102 | 15930 | 73.9 | 365 | 12.87 | 79% |
| Zagi Carbon 5.1x4.9 | 1 | 9.8 | 14.1 | 138 | 17430 | 80.9 | 439 | 15.49 | 77% |
| Zagi Carbon 5.1x4.9 | 1 | 10.7 | 15.95 | 170 | 18690 | 86.7 | 504 | 17.78 | 76% |
| APC E 5.5x4.5 | 1 | 6.9 | 9.45 | 65 | 12600 | 53.7 | 234 | 8.25 | 79% |
| APC E 5.5x4.5 | 1 | 7.9 | 11.4 | 90 | 13950 | 59.5 | 291 | 10.26 | 77% |
| APC E 5.5x4.5 | 1 | 8.8 | 13.65 | 120 | 15240 | 64.9 | 356 | 12.56 | 75% |
| APC E 5.5x4.5 | 1 | 9.8 | 15.9 | 155 | 16620 | 70.8 | 424 | 14.96 | 74% |
| APC E 5.5x4.5 | 1 | 10.7 | 18.3 | 195 | 17700 | 75.4 | 487 | 17.18 | 72% |
| APC E 6x4 | 1 | 6.9 | 9.55 | 65 | 12510 | 47.4 | 309 | 10.90 | 79% |
| APC E 6x4 | 1 | 7.8 | 11.6 | 90 | 13860 | 52.5 | 390 | 13.76 | 77% |
| APC E 6x4 | 1 | 8.8 | 13.6 | 119 | 15090 | 57.2 | 471 | 16.61 | 75% |
| APC E 6x4 | 1 | 9.8 | 16.4 | 160 | 16380 | 62.0 | 556 | 19.61 | 73% |
| APC E 6x4 | 1 | 10.8 | 18.8 | 203 | 17460 | 66.1 | 635 | 22.40 | 70% |
| MAS 3-blade 6x4 | 1 | 6.9 | 11.85 | 81 | 11680 | 44.2 | 289 | 10.19 | 74% |
| MAS 3-blade 6x4 | 1 | 7.8 | 14.1 | 109 | 12840 | 48.6 | 356 | 12.56 | 72% |
| MAS 3-blade 6x4 | 1 | 8.8 | 16.35 | 143 | 13960 | 52.9 | 426 | 15.03 | 69% |
| MAS 3-blade 6x4 | 1 | 9.7 | 18.7 | 181 | 15000 | 56.8 | 504 | 17.78 | 67% |
| MAS 3-blade 6x4 | 1 | 10.7 | 21.1 | 225 | 15900 | 60.2 | 590 | 20.81 | 65% |
| Aeronaut 6x5 | 1 | 6.8 | 11.25 | 76 | 11850 | 56.1 | 317 | 11.18 | 76% |
| Aeronaut 6x5 | 1 | 7.8 | 13.5 | 105 | 13050 | 61.8 | 387 | 13.65 | 73% |
| Aeronaut 6x5 | 1 | 8.8 | 16 | 140 | 14220 | 67.3 | 453 | 15.98 | 70% |
| Aeronaut 6x5 | 1 | 9.8 | 17.7 | 173 | 15270 | 72.3 | 521 | 18.38 | 68% |
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
| Aeronaut 6x5 | 1 | 10.7 | 21.3 | 227 | 15630 | 74.0 | 545 | 19.22 | 64% |
| Aeronaut 6.5x4 | 1 | 6.9 | 11.45 | 79 | 11910 | 45.1 | 404 | 14.25 | 75% |
| Aeronaut 6.5x4 | 1 | 7.8 | 13.7 | 106 | 13050 | 49.4 | 494 | 17.43 | 73% |
| Aeronaut 6.5x4 | 1 | 8.7 | 15.8 | 137 | 14160 | 53.6 | 578 | 20.39 | 71% |
| Aeronaut 6.5x4 | 1 | 9.7 | 18.9 | 183 | 14970 | 56.7 | 657 | 23.17 | 67% |
| Aeronaut 6.5x4 | 1 | 10.7 | 22 | 235 | 15570 | 59.0 | 698 | 24.62 | 63% |
| APC E 7x5 | 1 | 6.8 | 15.9 | 108 | 9930 | 47.0 | 455 | 16.05 | 63% |
| APC E 7x5 | 1 | 7.7 | 18.05 | 138 | 10680 | 50.6 | 527 | 18.59 | 60% |
